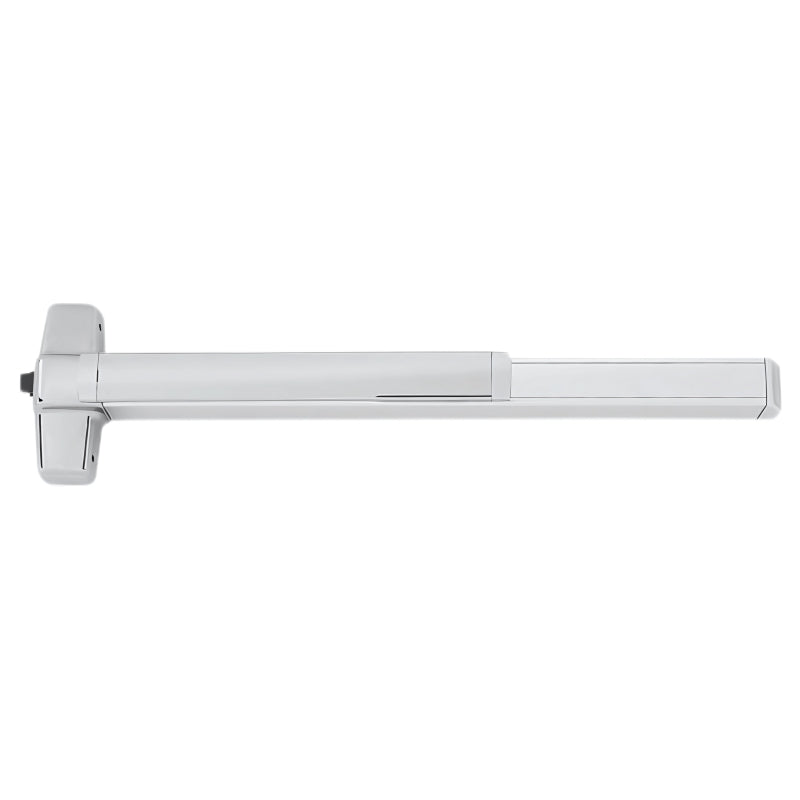

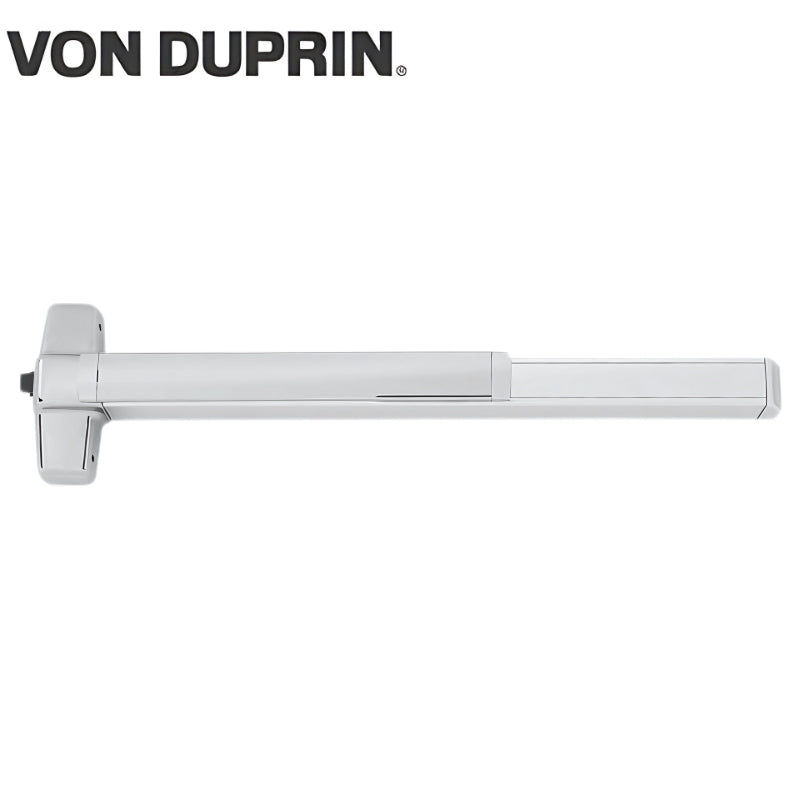

Von Duprin - QEL98EO-3 - Rim Exit Device - Motorized Latch Retraction - Bright Chrome 625/US26 - Non-Handed - Grade 1

The Von Duprin QEL98EO-3-US26 is a Grade 1 rim exit device designed for single and double doors, offering reliable security and durability. This model features Quiet Electric Latch Retraction (QEL), allowing for electronic control of the latch mechanism with minimal operational noise.

Features:

• Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
• Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
• Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
• Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
• Latch bolt: Deadlocking, 3/4" (19mm) throw
• Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available
