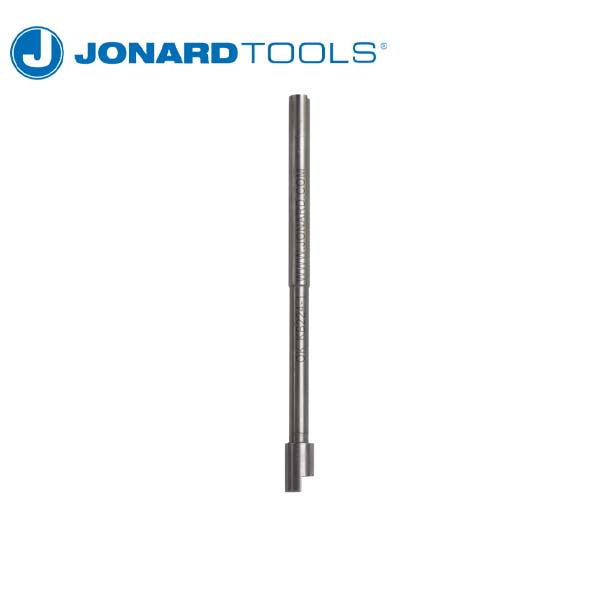

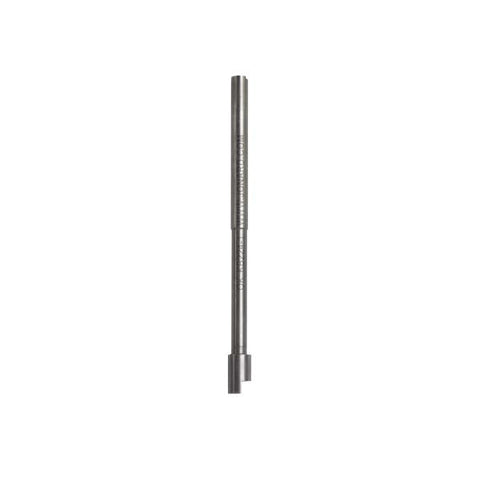

Wire Wrapping Bit - 22-24 AWG - 0.075" Diameter
Wire Wrapping Bit - 22-24 AWG - 0.075" Diameter
Wire Wrapping Bit - 22-24 AWG - 0.075" Diameter
Wire Wrapping Bit - 22-24 AWG - 0.075" Diameter
Wire Wrapping Bit - 22-24 AWG - 0.075" Diameter

Wire Wrapping Bit - 22-24 AWG - 0.075" Diameter

$59.95 $74.94
Availability: Available
Wishlist
  • Product SKU: JND-KB224-1
  • NSID: 44907
  • JND-KB224-1

    Fully compatible with any make or model of wire wrapping tools, this 3" wire wrapping bit is perfect for wrapping 22-24 AWG wire around binding posts when used in conjunction with a wire wrapping tool.

    Compatible Wrap Sleeve Part No.: P2224, P2224INS


    $59.95
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

Specifications


    Sleeve Part No.

    P2224 and P2224INS (sold separately)

    Wrap Function

    Wrap

    Wrap Type

    Regular

    Wire Gauge

    22-24 AWG (0.65 mm - 0.50 mm)

    Minimum Terminal Diagonal

    0.054" (1.37 mm)

    Maximum Terminal Diagonal

    0.073" (1.85 mm)

    Terminal Hole Depth

    1" (25.4 mm)

    Terminal Hole Diameter

    0.075" (1.9 mm)

    Effective Radius

    0.111" (2.82 mm)

    Wrap Post Size

    0.045" (1.14 mm)

    Dimensions 3.13 in x 0.23 in x 0.23 in (7.94 cm x 0.59 cm x 0.59 cm)
    Weight 0.02 lb (7.264 g)
    UPC # 811490013049

    Downloads:

    JND-KB224-1

    Fully compatible with any make or model of wire wrapping tools, this 3" wire wrapping bit is perfect for wrapping 22-24 AWG wire around binding posts when used in conjunction with a wire wrapping tool.

    Compatible Wrap Sleeve Part No.: P2224, P2224INS

      Specifications


        Sleeve Part No.

        P2224 and P2224INS (sold separately)

        Wrap Function

        Wrap

        Wrap Type

        Regular

        Wire Gauge

        22-24 AWG (0.65 mm - 0.50 mm)

        Minimum Terminal Diagonal

        0.054" (1.37 mm)

        Maximum Terminal Diagonal

        0.073" (1.85 mm)

        Terminal Hole Depth

        1" (25.4 mm)

        Terminal Hole Diameter

        0.075" (1.9 mm)

        Effective Radius

        0.111" (2.82 mm)

        Wrap Post Size

        0.045" (1.14 mm)

        Dimensions 3.13 in x 0.23 in x 0.23 in (7.94 cm x 0.59 cm x 0.59 cm)
        Weight 0.02 lb (7.264 g)
        UPC # 811490013049

        Downloads:

        Compatible With
