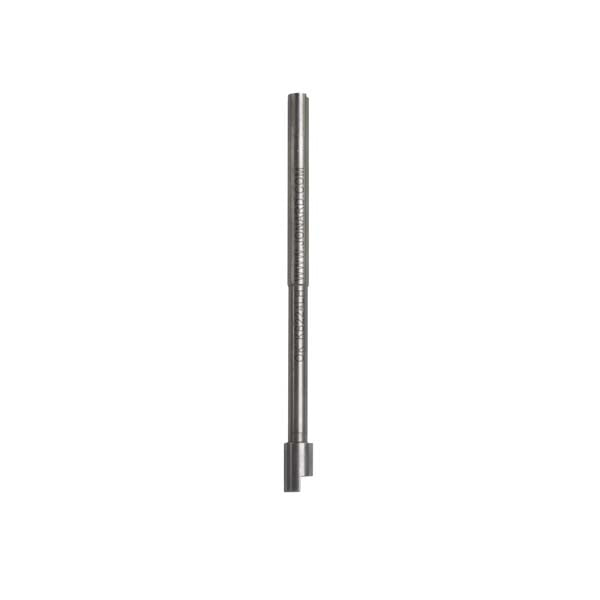

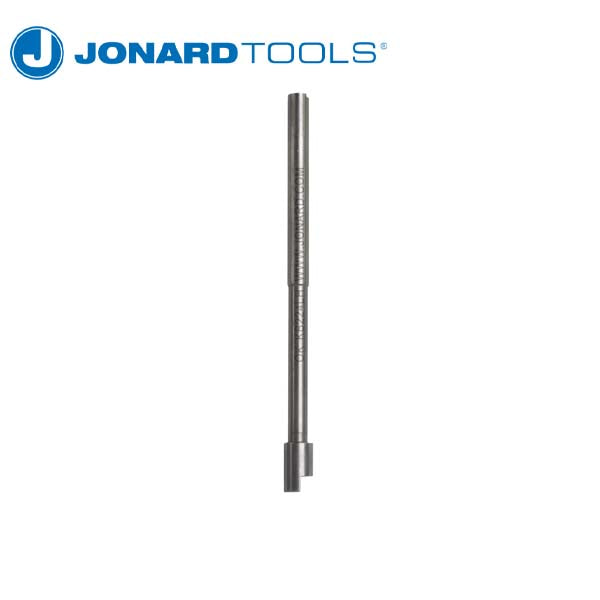

Wire Wrapping Bit - 22-24 AWG - 0.086" Diameter
- Product SKU: JND-KB224LH
- NSID: 44911
-
JND-KB224LH
Fully compatible with any make or model of wire wrapping tools, this 3" wire wrapping bit is perfect for wrapping 22-24 AWG wire around rectangular binding posts when used in conjunction with a wire wrapping tool.
Compatible Wrap Sleeve Part No.: P2224, P2224INS
Specifications
| Sleeve Part No. |
P2224 and P2224INS (sold separately) |
|---|---|
| Wrap Function |
Wrap |
| Wrap Type |
Regular |
| Wire Gauge |
22-24 AWG (0.65 mm - 0.50 mm) |
| Minimum Terminal Diagonal |
0.061" (1.54 mm) |
| Maximum Terminal Diagonal |
0.085" (2.15 mm) |
| Terminal Hole Diameter |
0.086" (2.18 mm) |
| Terminal Hole Depth |
1" (25.4 mm) |
| Effective Radius |
0.117" (2.97 mm) |
| Dimensions | 3.13 in x 0.23 in x 0.23 in (7.94 cm x 0.59 cm x 0.59 cm) |
| Weight | 0.02 lb (7.264 g) |
| UPC # | 811490013391 |
