Wire Wrapping Bit - 22-24 AWG - 0.807" Diameter
- Product SKU: JND-KB224
- NSID: 44910
-
JND-KB224

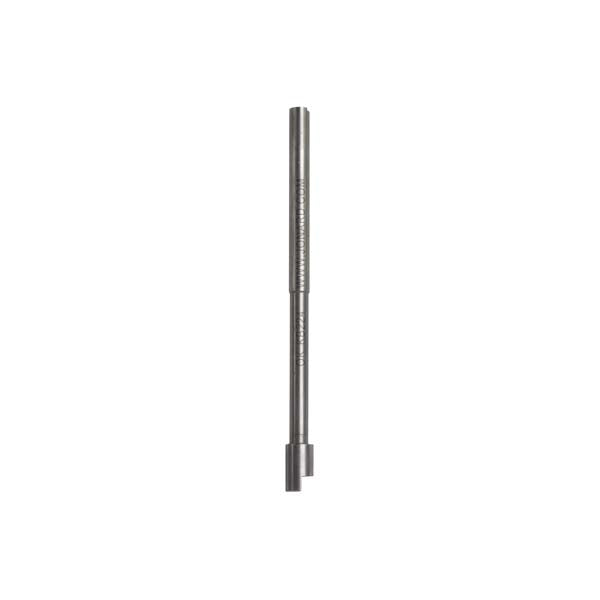

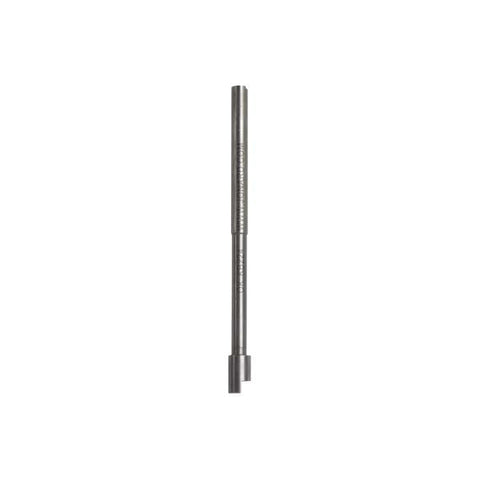

Fully compatible with any make or model of wire wrapping tools, this 3" wire wrapping bit is perfect for wrapping 22-24 AWG wire around binding posts when used in conjunction with a wire wrapping tool.
Compatible Wrap Sleeve Part No.: P2224, P2224INS, S224
Specifications
| Sleeve Part No. |
P2224, P2224INS, S224 (sold separately) |
|---|---|
| Wrap Function |
Wrap |
| Wrap Type |
Regular |
| Wire Gauge |
22-24 AWG (0.65 mm - 0.50 mm) |
| Maximum Terminal Diagonal |
0.073" (1.85 mm) |
| Minimum Terminal Diagonal |
0.054" (1.37 mm) |
| Terminal Hole Depth |
0.807" (20.05 mm) |
| Terminal Hole Diameter |
0.075" (1.9 mm) |
| Effective Radius |
0.111" (2.82 mm) |
| Wrap Post Size |
0.045" (1.14 mm) |
| Dimensions | 3.13 in x 0.23 in x 0.23 in (7.94 cm x 0.59 cm x 0.59 cm) |
| Weight | 0.02 lb (8.172 g) |
| UPC # | 811490010550 |
