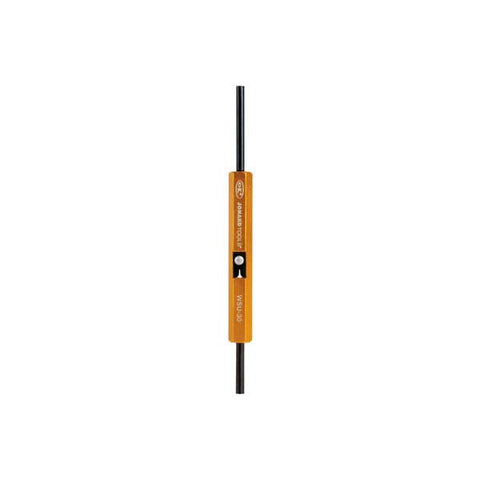

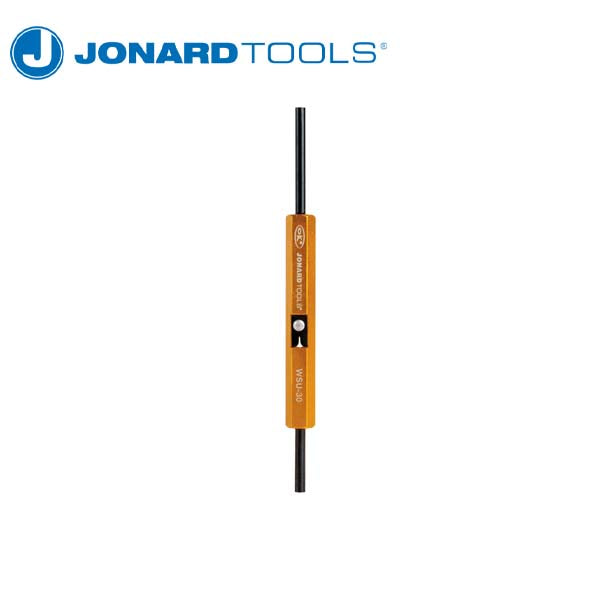

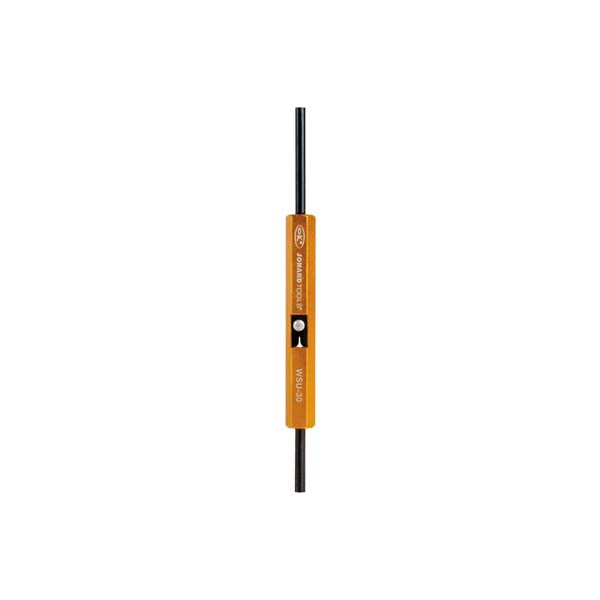

*Discontinued* Wrap-Strip-Unwrap Tool - 30 AWG - Regular Wrap Type

*Discontinued* Wrap-Strip-Unwrap Tool - 30 AWG - Regular Wrap Type

Discontinued
SKU JND-WSU-30 NSID 45408
$46.95

Designed to wrap, strip, and/or unwrap 30 AWG (0.25 mm) wire, this tool is perfect for quick wire service and repair applications. This tool features the following:

  • For use on 0.025" (0.63 mm) square terminals on 0.100" (2.54 mm) center to center of the pins
  • Compact and convenient for making precise wire wraps where power wire wrapping tools are impractical
  • Patented built-in wire stripping blades make wire stripping quick and easy in such a compact tool
  • Rugged aluminum housing for long life and durability
View full details

Details

    Specifications


      Wrap Type

      Regular
      Wire Gauge

      30 AWG (0.25 mm)
      Terminal Hole Diameter

      0.036" (0.91 mm)
      Terminal Hole Depth

      1.50" (38.1 mm)
      Outside Diameter

      0.125" (3.2 mm)
      Wrap Post Size

      0.025" (0.63 mm)
      Dimensions 4.53 in x 0.36 in x 0.34 in (11.51 cm x 0.9 cm x 0.86 cm)
      Weight 0.03 lb (11.804 g)
      UPC # 811490012172
