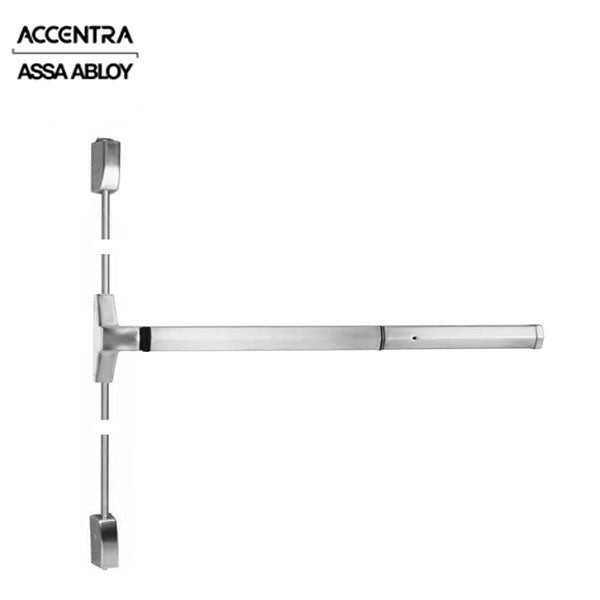

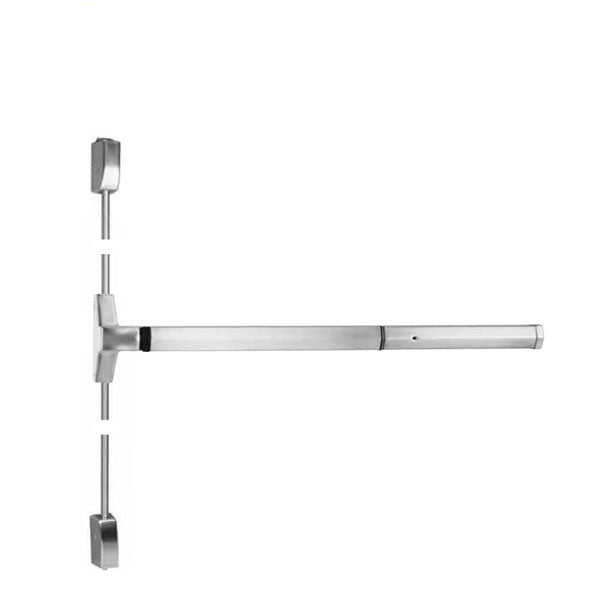

Accentra (Formerly Yale) - 7110F - Surface Mounted Vertical Rod Exit Device - Less Trim - 3 Foot - Fire Rated - Stainless Steel - Grade 1
Accentra (Formerly Yale) - 7110F - Surface Mounted Vertical Rod Exit Device - Less Trim - 3 Foot - Fire Rated - Stainless Steel - Grade 1
Couldn't load pickup availability
Yale® 7000 Series Exit Devices deliver an unparalleled combination of durability, innovation and aesthetics. With ANSI/BHMA Grade 1 certification and a full range of mechanical and electromechanical functions and accessories, the 7000 Series can be easily integrated into existing security or fire alarm systems to ensure the safety of every opening. The 7110(F) is a surface vertical rod exit device to be used on wide stile or flush doors up to 8' (fire) and 10' (panic) where two-point latching is desired.
Features
- Designed for wide stile and flush doors
- Handed. Specify hand (field reversible)
- Bottom deadbolt for secure latching
- Fully adjustable roller strike
- Pairs of doors• Double egress
- Metal, wood or composite door materials
Details
Specifications
| Trim | Less Trim |
| Door Opening Width | 36 for 30" - 36" (76cm - 91cm) doors |
| Door Opening Height | 7' (2134 mm) standard door height |
| Door Thickness | 1-3/4" (44mm) standard. |
| Minimum Stile Width | 4-1/2" (114mm) |
| Projection | 3-1/4" (83mm) active, 2-3/4" (70mm) dogged |
| Latchbolt | Top: 3/4" (19mm) throw, |
| Vertical Rods | 1/2" O.D. tubular brass, bronze or stainless steel with rod guides |
| Strike | Top: Roller type 791. Bottom: Flush-mounted 790. |
| Fasteners | Machine screws and wood door fasteners |
| Dogging feature | Hex key dogging supplied standard |
| Fire Rated | Yes |
| Certifications | ANSI/BHMA Grade 1 certified, UL/cUL listed for panic and fire doors. |
| Manufacturer's Warranty | 5 Year Mechanical |
Downloads
Notes
Note: This brand is in the process of a name change. Products may come with Yale or Accentra logos they are the same company.
