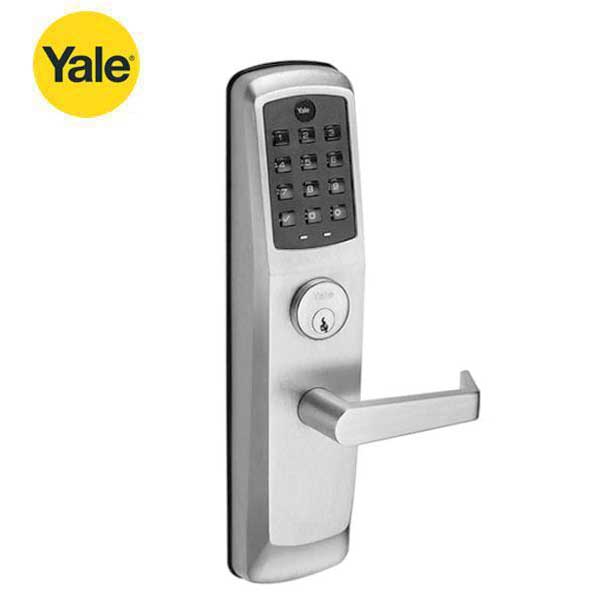

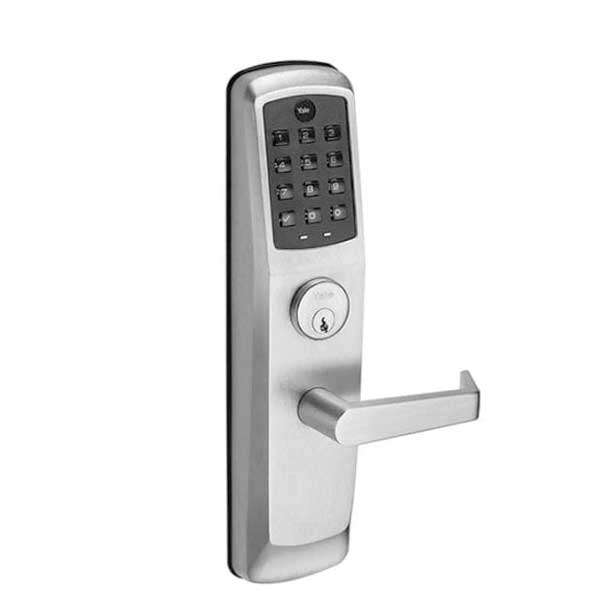

*Discontinued* YALE - NexTouch - Commercial Electronic Lever Keypad Exit Trim - Augusta Lever - Push Button w/ Key Override - YALE Keyway - Satin Chrome - Grade 1
*Discontinued* YALE - NexTouch - Commercial Electronic Lever Keypad Exit Trim - Augusta Lever - Push Button w/ Key Override - YALE Keyway - Satin Chrome - Grade 1
The Yale nexTouch keyless electronic door locks combine a modern look with durability that is perfect for your multi-family or mixed-use property, small business, office, retail space, restroom, or other commercial building application. All nexTouch products are easy to use and install and allow you to manage access with up to 500 unique PIN codes. Yale nexTouch is ANSI/BHMA Grade 1 Certified and weather-resistant for outdoor use.
Features:
- Tactile Pushbutton Keypad with Lockout
- 500 Unique Pin Code Access
- Lifetime Audit Trail
- Voice Programming in 3 Languages
- Three Volume Modes
- Privacy Feature
- Weather Resistant Gasket Seal
- Low Battery Indicator
- Hardwired Power and 9V Battery Power Backup
Details
Specifications:
| Lock Function: | NTB610 - Deadlocking rim bolt, Pushbutton Keypad with Cylinder Override |
| Handing: | Non-Handed, Field Reversible |
| Lever: | Augusta Style |
| Finish: | 626 - Satin Chrome |
| Tech: | Keypad Only, No Radio |
| Door Thickness: | Adjustable from 2-1/4" to 1-3/4" |
| Cylinder: | Yale Keyway 6 Pin |
| ADA: | Meets Requirements of the Americans with Disabilities Act |
| Certifications: | A156.13, Series 1000 Grade 1 Certified, UL Listed 3 Hours. |
| Warranty: | 3 Year Limited Manufacturer's Warranty |
Compatible Exit Devices:
- Arrow 3880
- Corbin Russwin ED5200, ED5200S
- Dorma 9300
- Falcon 25
- SARGENT 8800
- Von Duprin® 98, 99
- Yale 1800, 2100, 6000, 7000
Downloads:
