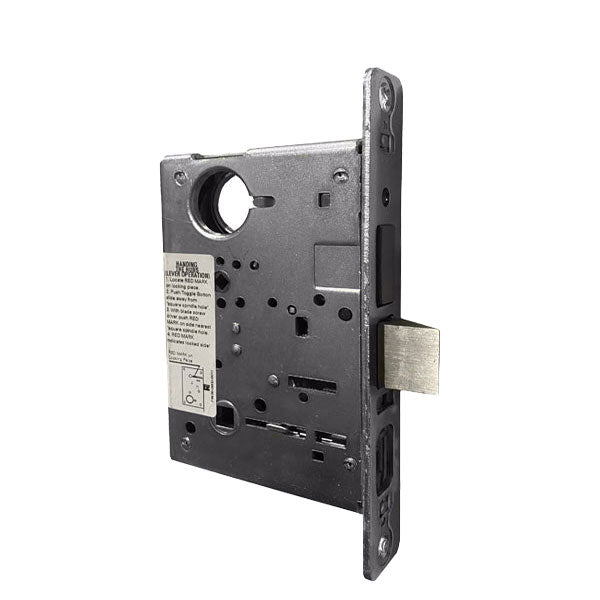

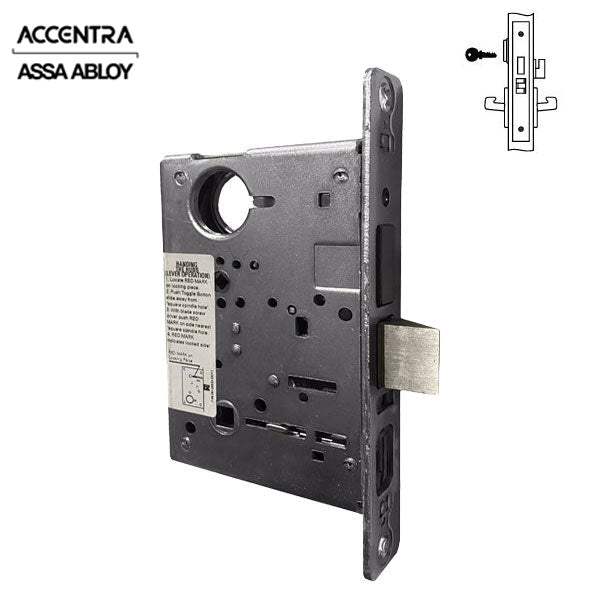

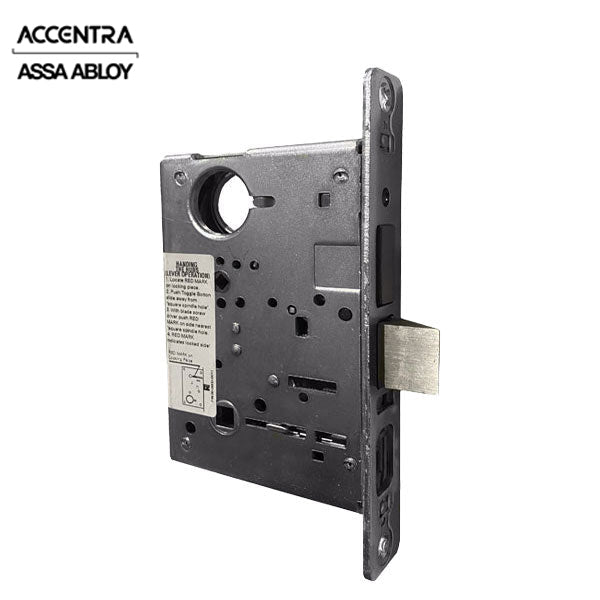

Yale - LBDY88-02-FL - Mortise Lock Body - Privacy - Satin Chrome - Body Only - Fire Rated - Grade 1
- Product SKU: Yale-LBDY88-02-FL-626
- NSID: 28419
-
Yale-LBDY88-02-FL-626
Yale 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications. Once installed, the 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability. The 8800 Series Mortise Lock is even backed by a 10 year mechanical warranty, making this product completely worry-free. Heavy-duty trim for resistance against damage and vandalism. UL/cUL listed for 3 hour fire rated doors. For Offices, shopping centers, industrial buildings, commercial facilities.
Features
- Latchbolt retracted by knob/lever either side
- Deadbolt operated by thumbturn inside
- When the deadbolt is projected, outside knob/lever is automatically locked
- Anit-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside knob/lever
- In emergency, deadbolt may be unlocked from outside by E203 emergency key
Specifications
| Lock Function | F19 - Privacy/Bedroom |
| Handing | Field Reversible |
| Door Thickness | 1-3/4" (44 mm) |
| Cylinder | No Cylinder - Lock Body Only |
| Latchbolt |
3/4" throw |
| Duty / Weight Class |
Heavy Duty |
| Application |
For Offices, shopping centers, industrial buildings, commercial facilities |
| Finish | 626 - Satin Chrome |
| Fire Rated | 3 Hours |
| Certifications |
Certified ANSI/BHMA A156.13, UL / cUL Listed, Grade 1 |
| Manufacturer Warranty | Limited 10-Year Warranty |
