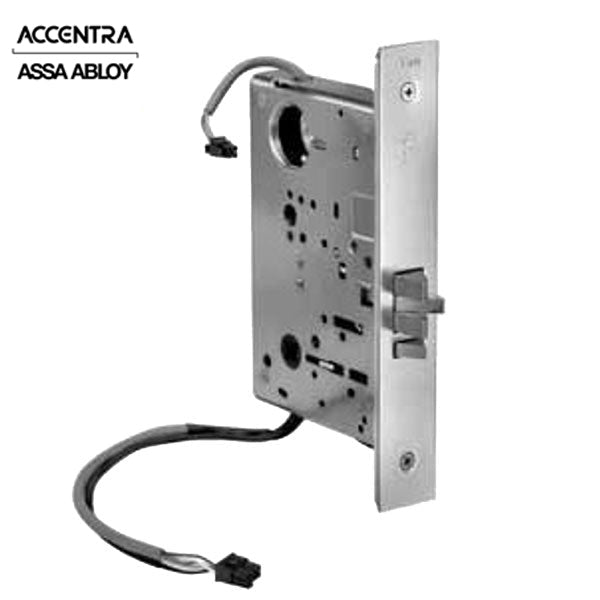

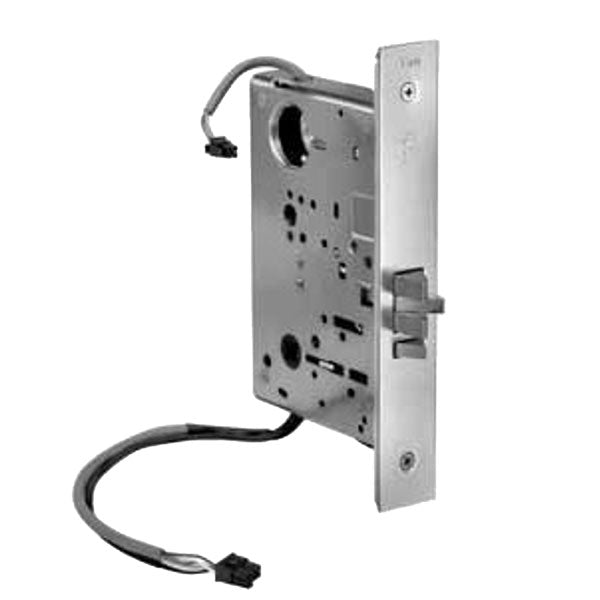

Yale - LBDY8891FL - Electric Mortise Lock Body -Satin Chrome - Body Only - Fire Rated - Grade 1
- $639.53
-
$767.44 - $639.53
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Yale 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications. Once installed, the 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability. The 8800 Series Mortise Lock is even backed by a 10 year mechanical warranty, making this product completely worry-free. Heavy-duty trim for resistance against damage and vandalism. UL/cUL listed for 3 hour fire rated doors. For Offices, shopping centers, industrial buildings, commercial facilities.
Features
- RX Request to Exit
- Power off – outside lever locked
- Power on – outside lever active
- Auxiliary latch deadlocks latchbolt
- Inside lever always free
- Mechanical key override by outside when locked
Specifications
Handing | Field Reversible |
Door Thickness | 1-3/4" (44 mm) |
Cylinder | No Cylinder - Lock Body Only |
Operating Voltage |
24VDC |
Duty / Weight Class |
Heavy Duty |
Application |
Stair tower doors, office doors, classrooms, interlocks, elevator lobby doors, laboratories, computer rooms, cashier stations, hospital equipment rooms and pharmaceutical storage rooms |
Finish | 626 - Satin Chrome |
Fire Rated | 3 Hours |
Certifications |
Certified ANSI/BHMA A156.13 |
Manufacturer Warranty | 2 Years Limited |
