*Discontinued* YALE - NexTouch - Commercial Electronic Keypad Lever Lock - T-Strike - Augusta Lever - Pushbutton w/ Key Override - 2-3/4" Backset - YALE Keyway - Satin Chrome - Grade 1

*Discontinued* YALE - NexTouch - Commercial Electronic Keypad Lever Lock - T-Strike - Augusta Lever - Pushbutton w/ Key Override - 2-3/4" Backset - YALE Keyway - Satin Chrome - Grade 1

Discontinued
SKU YALE-AUNTB610-NR-626-371-1803-53L NSID 23823
$353.90

YALE-AUNTB610-NR-626-371-1803-53L

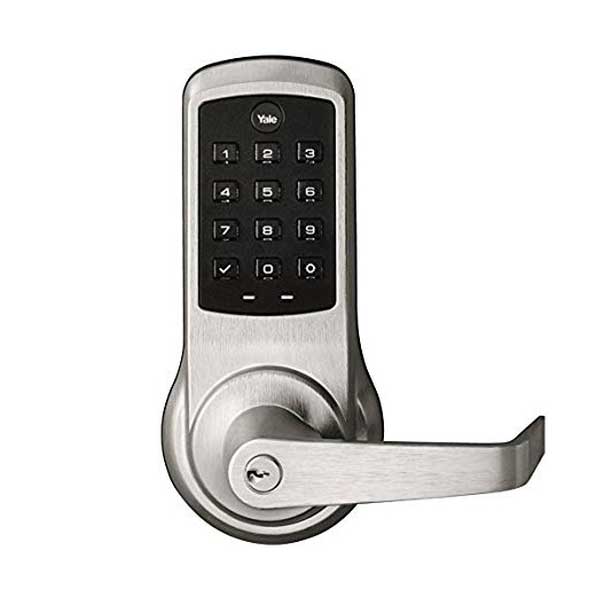

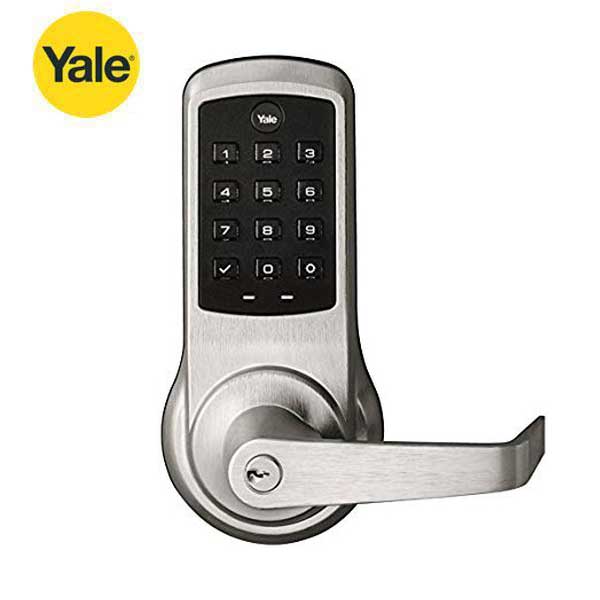

The Yale nexTouch keyless electronic door locks combine a modern look with durability that is perfect for your multi-family or mixed-use property, small business, office, retail space, restroom, or other commercial building application. All nexTouch products are easy to use and install and allow you to manage access with up to 500 unique PIN codes. Yale nexTouch is ANSI/BHMA Grade 1 Certified and weather-resistant for outdoor use.

Features:

  • Tactile Pushbutton Keypad with Lockout
  • 500 Unique Pin Code Access
  • Lifetime Audit Trail
  • Voice Programming in 3 Languages
  • Three Volume Modes
  • Privacy Feature
  • Weather Resistant Gasket Seal
  • Low Battery Indicator
  • Hardwired Power and 9V Battery Power Backup


View full details

Details

Specifications:

Lock Function: NTB610 - Deadlocking latchbolt, Pushbutton Keypad with Cylinder Override
Handing: Non-Handed, Field Reversible
Backset: 2-3/4" (70mm)
Throw: 1/2" (13mm)
Latch Diameter: 1" (25m)
Lever: Augusta Style
Finish: 626 - Satin Chrome
Tech: Keypad Only, No Radio
Door Thickness: Adjustable from 1-3/8" to 1-3/4"
Cylinder: Yale Keyway 6 Pin
Strike: 371 T-Strike 1-1/4" Curved Lip Standard
ADA: Meets Requirements of the Americans with Disabilities Act
Certifications: A156.2, Series 4000 Grade 1 Certified, UL Listed 3 Hours.
Warranty: 3 Year Limited Manufacturer's Warranty
