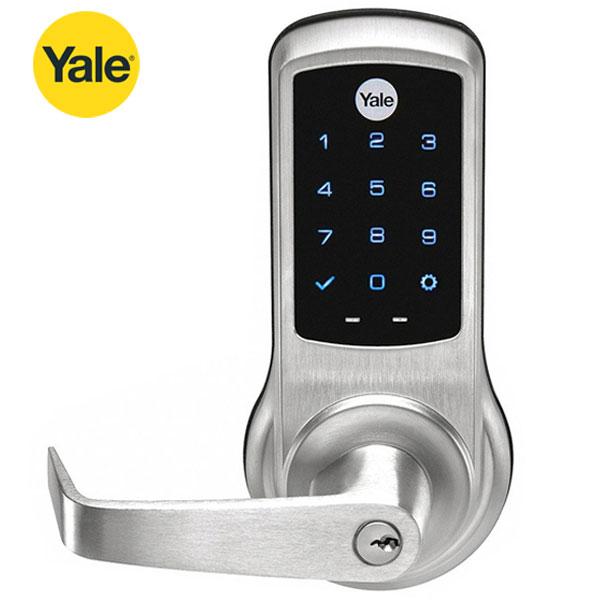

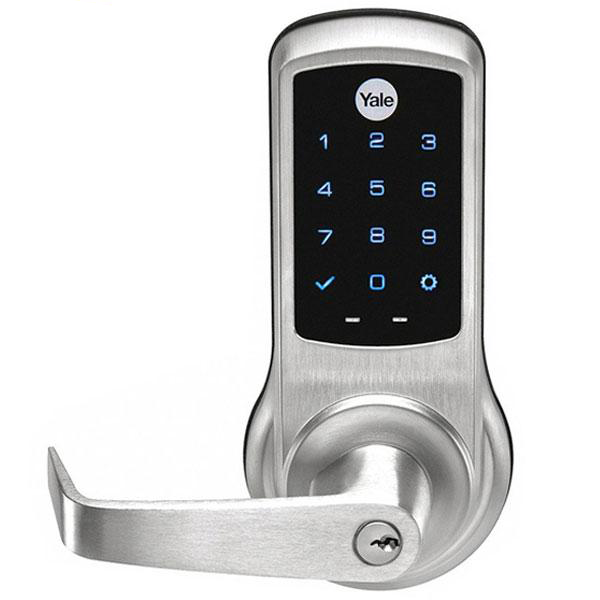

Yale NTB620 Electronic Cylindrical Lever Lock - w/ NextTouch Capacitive Touchscreen - Schlage C - Satin Chrome - w/ Key Override - UHS Hardware
Yale NTB620 Electronic Cylindrical Lever Lock - w/ NextTouch Capacitive Touchscreen - Schlage C - Satin Chrome - w/ Key Override - UHS Hardware

*Discontinued* Yale NTB620 Electronic Cylindrical Lever Set - w/ NextTouch Capacitive Touchscreen - Optional Keyway - Satin Chrome - w/ Key Override

Out of Stock
SKU: YALE-AU-NTB620-NR-626-2803-53L-delete
NSID:
$399.12
$0.00
$399.12

YALE-AU-NTB620-NR-626

  • Satin Chrome finish
  • Lever style: (AU) Augusta lever
  • Handing: Non handed
  • Optional Keyway: Schlage C Keyway
  • Technology: Keypad only, no radio
  • Bored lock w/capacitive touchscreen - cylinder override
  • For doors that require mechanical key override
  • Latchbolt retracted by lever outside with valid PIN code; by use of mechanical key, or by operating lever inside.
  • Inside lever always active
  • Deadlocking latchbolt: Model No. 694 latchbolt has a 2-1/4" x 1-1/8" front with a 2-3/4" backset and a 1/2" bolt throw
  • Strike: 497 ANSI strike standard
  • Door Thickness: 1-3/4" Standard
  • 1-1/2" (38mm) diameter piston
  • Adjustable spring sizes 1 through 6 (ADA Compliant)
  • Power: Battery pack
  • Operating Voltage: 4 AA Batteries
  • Works with cloud-based management software
  • Up to 500 user codes in keypad only operation
$399.12
$0.00
$399.12
