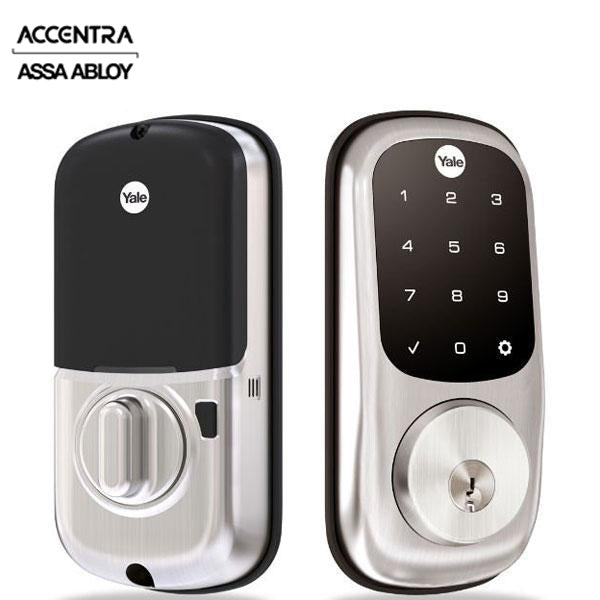

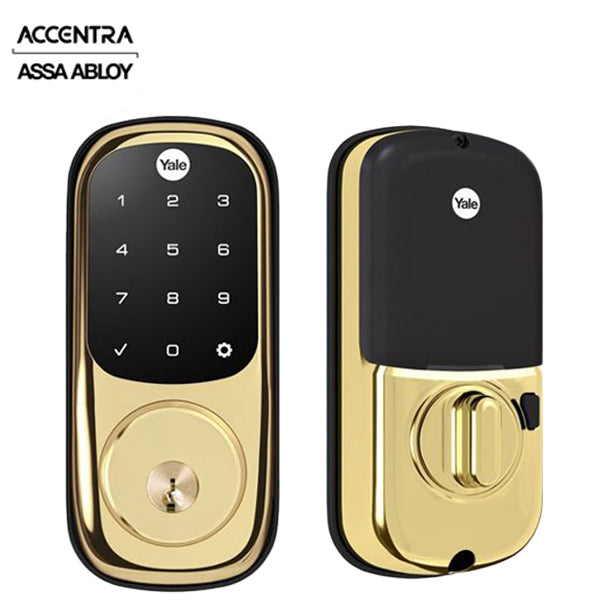

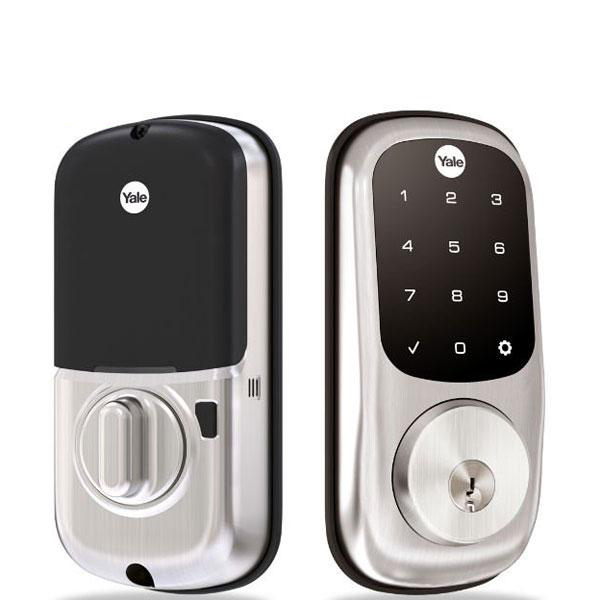

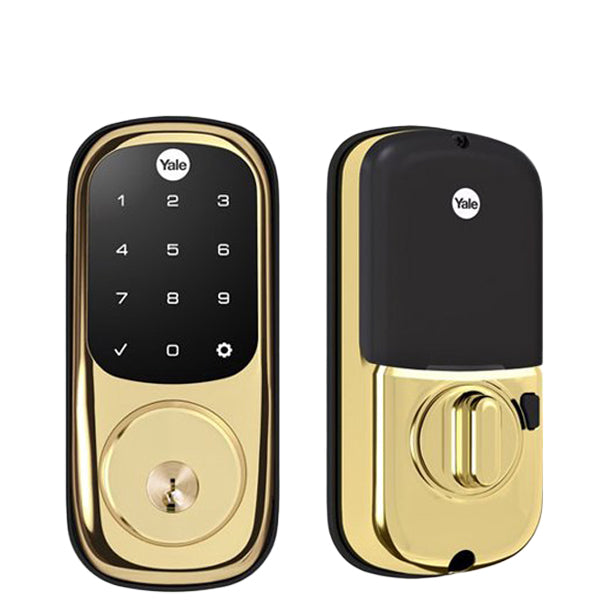

Yale - YRD226 - Assurance Electronic Deadbolt Lock - Touchscreen - Single Cylinder - 2-3/8" Backset - Schlage "C" Keyway - Optional Smart Connectivity - Keyed Different - Optional Finish - Grade 2
Available to Order
SKU:
YALE-YARYRD226-ZW2-619-SCKD
NSID:
37784
37834
- $274.86
-
$319.20 - $274.86
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
YALE-YARYRD226
Features
- Create up to 250 unique entry codes to share with friends and family (25 for Standalone models).
- Keypads wake with a touch and feature backlit numbers that won’t wear off.
- Key free model features a 9V battery back-up to prevent lockouts.
- Z-Wave Technology Optional
- • When upgraded with a Yale Smart Modules, lock and unlock remotely, view access history and share access rights from your smartphone with most Z-Wave systems or with the Yale
- Latch operated from outside by electronic touchscreen interaction, or outside by key, inside by T turn.
- Access app when using a Yale Access Module.
Specifications
| Function | Keyed Touchscreen Deadbolt |
| Door Specs | 2-1/8" Face Bore, 1" Edge Bore, 2-3/8" or 2-3/4" Backset |
| Door Thickness | 1-3/8" to 2-1/4" (requires thin door gasket to support doors 1-3/8" - 1-3/4") |
| Strike | 1" x 2-1/4" RC (Round Corner) |
| Latch | 2-3/8" or 2-3/4" Adjustable |
| Latch Faceplate | 1" x 2-1/4" RC (Round Corner) |
| Keyway | Schlage "C" |
| Keys | 2 |
| Keying | KD (Keyed Different) |
| Technology | Standalone, Z-Wave Plus |
| Finish | 619 - Satin Nickel, 605 - Polished Brass |
| Certifications | A156.36 Grade 2, UL/cUL Listed |
| Manufacturer's Warranty | 1 Year Electronic, Limited Lifetime Mechanical and Finish |
