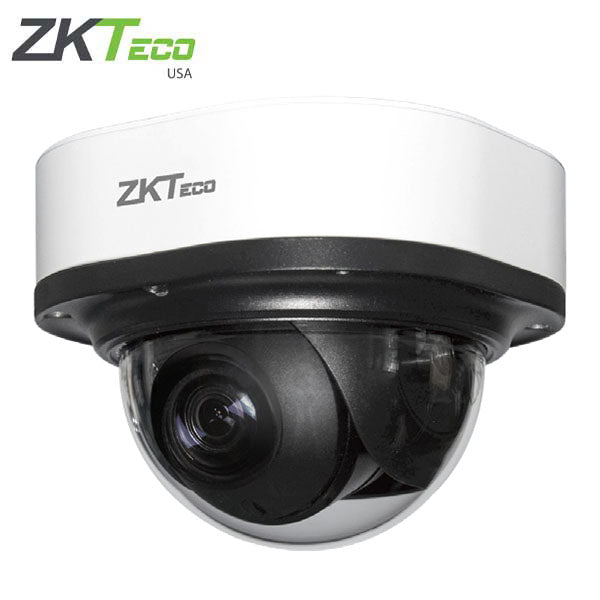

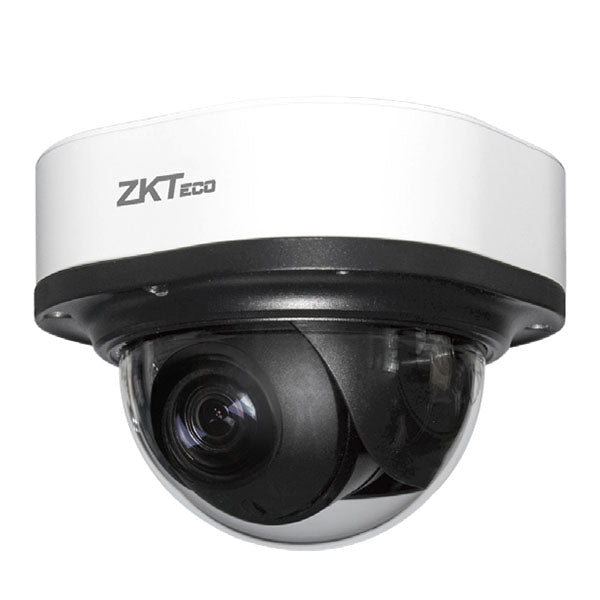

ZKTeco - DL-855P28B-S7 - Dome Camera / Pro Series / 5MP CMOS Sensor / IP / 3.6 ~ 10.8mm Optical Lens / Outdoor / IP67 / 30m IR / Face Recognition

Available to Order
SKU: ZKT-DL-855P28B-S7
NSID: 68207

Please Note: This product has a lead time


Pro Series is a super cost-efficient solution that is powered by cutting-edge technology for crystal clear video monitoring with embedded face detection algorithm, the camera supports White/Black list event alarm deployment in different scenarios. The camera
also supports multiple industry-leading Intelligent video analytic functions, such as Face Detection, Line Crossing, Intrusion, Object Left/Lost, Counting for smart event alarms. The P2P cloud function is built-in for every device , allowing more convenient and flexible remote real-time viewing and monitoring.


  • H.265 technology is an evolutionary optimization of the traditional H.264. It includes a series of encoding strategies such as dynamic ROI, smart 2D&3D noise reduction for delivering high-quality videos and greatly saving up to 70% bandwidth and storage. Protection With the precise mechanical and rugged metal casing design, IP cameras of the Pro series rated IP67 could stand against water and dust for a long time.
  • With 10% of input voltage tolerance, the cameras could work safely under extreme or unstable power conditions. With a working temperature range from -30°C ~ 60°C, the cameras could adapt to a variety of harsh outdoor environments.
Call 1-800-878-6604 for Bulk / Dealer Pricing!


Parameter Value
Model DL-855P28B-S7
Image Sensor 1/2.7” CMOS
Effective Pixels 2592 * 1944
Min. Illumination

Color: 0.08Lux@F1.7 (AGC ON)

B/W: 0.001Lux@F1.7 (AGC ON

Flash / DDR 128Mb / 1Gb
IR LED No. 4
IR Distance 30m
S/N Ratio > 52dB
Lens Type Motorized
Mount Type Board-in
Focal Length 3.6mm~10.8mm
Aperture F1.6 - 3.3
FOV 29.8°~93.5°
Optical Zoom 3X
Compression H.265 / H.264
Resolution 5MP(2562x1944) / 4MP (2688 x 1520) /
3MP (2304 x 1296) /
1080P (1920 x 1080) /
1.3MP (1280 x 960) / 720P (1280 x 720)
Bitrate Control CBR / VBR
Bitrate H.265: 3Mbps - 8Mbps
H.264: 3Mbps - 8Mbps
Multi-Streaming Main Stream: 5MP@25fps/ 4MP@25fps /
3MP@25fps /1080P@25fps
/ 960P@25fps / 720P@25fps
Sub Stream : D1@25fps / VGA@25fps /
Third Stream: CIF@25fps



Compatible With
