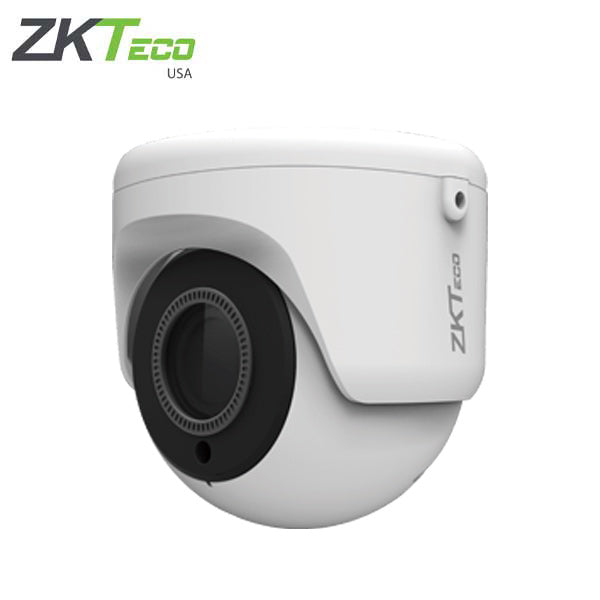

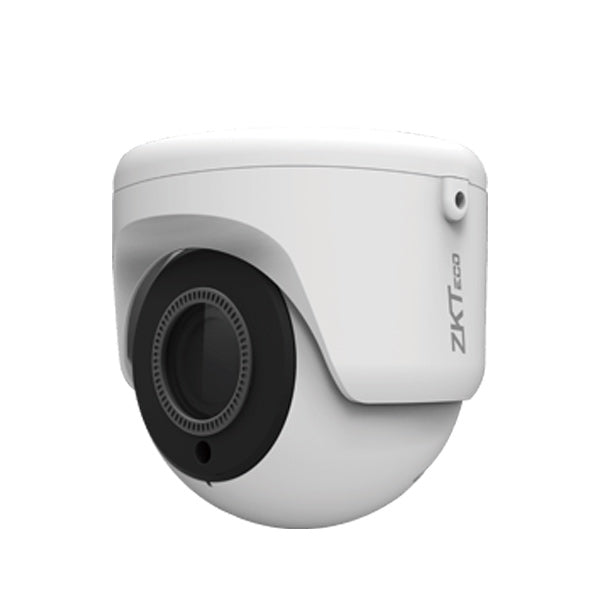

*Discontinued* ZKTeco - EL-854N38I-E3 - Eyeball Camera / BioPro Series / 4MP CMOS Sensor / IP / 3.6mm - 10.8mm Lens / Outdoor / IP67 / 50m IR / Face Recognition

*Discontinued* ZKTeco - EL-854N38I-E3 - Eyeball Camera / BioPro Series / 4MP CMOS Sensor / IP / 3.6mm - 10.8mm Lens / Outdoor / IP67 / 50m IR / Face Recognition

Discontinued
SKU ZKT-EL-854N38I-E3 NSID 68220
$181.00

BioPro Series 4MP IP cameras provide a cost-efficient solution that is powered by cutting-edge technology for crystal-clear video
monitoring.

With an embedded face detection algorithm, the camera supports White/Black-list event alarm deployment under different scenarios.

The BioPro series also offers multiple industry-leading intelligent video analytic functions, such as Face Detection, Line Crossing,
Intrusion, Object Left/Lost, Counting, for smart event alarms.

The P2P cloud function is built-in for every device, which is more convenient and flexible for remote real-time viewing

Features:

  • 1/2.8” Sony STARVIS CMOS sensor
  • H.265+ dual-stream encoding
  • High-quality optical lens: 3.6-10.8mm
  • 50m IR effective range
  • Built-in PoE
  • An embedded face detection algorithm
  • Intelligent video analytics available
  • Multiple web browsers supported
  • Remote viewing with mobile application or VMS
  • Lightning protection up to 6kV
  • IP67 metal casing
View full details

Details




Specifications:

Parameter Value
Model EL-854N38I-E3
Image Sensor 1/2.8" Sony STARVIS CMOS
Effective Pixels 2592 * 1520
Flash / DDR 128Mb / 1Gb
IR LED No. 2
IR Distance 50m
S/N Ratio > 52dB
Lens
Lens Type Motorized
Mount Type Board-in
Focal Length 3.6mm - 10.8mm
Aperture F1.7 - F3.3
FOV 29.8° - 93.5°
Optical Zoom 3X
Compression H.265+, H.265, H.264
Resolution 4MP (2592 x 1520) / 3MP (2304 x 1296) / 1080P (1920 x 1080) / 1.3MP (1280 x 960) / 720P (1280 x 720)
Bitrate Control CBR / VBR
Bitrate 1024Kbps - 4Mbps
Multi-Streaming
Main Stream 4MP@25fps / 3MP@25fps / 1080P@25fps / 960P@25fps / 720P@25fps
Sub Stream Sub Stream: D1@25fps / VGA@25fps / CIF@25fps
Third Stream N/A
Motion Detection Support
Digital Zoom Support
Audio Compression G7.11u
Privacy Mask 5 areas
WDR TWDR
Day / Night Support
White Balance Support
Corridor Mode Support
Defog N/A
Noise Reduction 2D/3D DNR
HLC Support
Mirror / Flip Support
BLC Support
ROI 4 areas
Anti-flicker Support
IVA
Intelligent Video Face Detection / Line Crossing / Area Detection / Target Count / Object Left / Lost / VQD / Video Tampering
Facial Detection
Face Templates N/A
Face Detected Per Frame 30
Detected Face Size 80 x 80 - 300 x 300 Pixels
Face Quality Filtering Support
Detection Area User-defined
Capture Response ≤1s
Network
Protocol TCP/IP, UDP, HTTP, DHCP, RTSP, NTP
Interoperability ONVIF Profile S, SDK, API
Max. Online Users 3
Web Browser IE / Firefox / Chrome / Safari
Management Software (VMS) AntarVis 2.0
ZKBioSecurity IVS
ZKBio Access IVS
Operation System Windows
Mobile APP AntarView Pro
P2P Cloud Service Support
Interface
Note Video streaming is not available for Firefox / Chrome / Safari
Ethernet 1 RJ-45 port (10/100Mbps)
Audio I/O 1/0
Alarm I/O N/A
RS485 N/A
Reset Button N/A
Micro-SD Slot N/A
ANR N/A
USB N/A
General
Power Supply PoE (IEEE802.3af), DC 12V±10%
Power Consumption < 3W
Ingress Protection IP67
Dimensions (L*W*H) Φ111.6 * 105 (mm)
Working Temperature -30°C ~ 60°C
Working Humidity 10% ~ 90%
Net Weight 0.40kg
Gross Weight 0.64kg
Ordering Information
Camera 4MP Camera
Model EL-854N38I-E3
Description 4MP Motorized Lens Face Detection
Eyeball IP Camera
