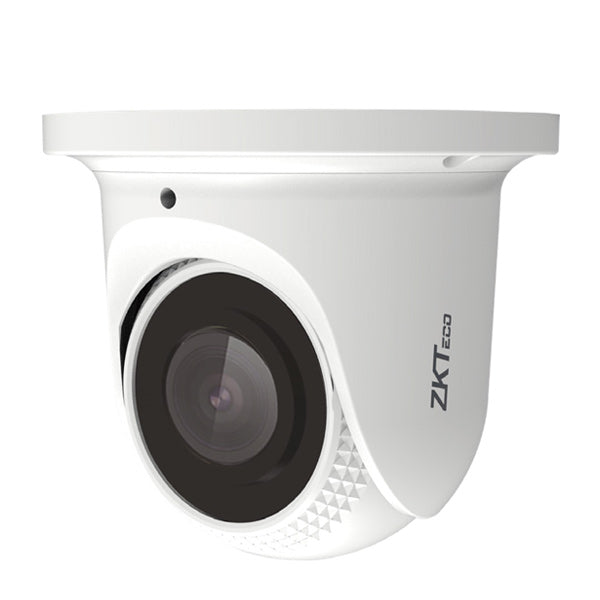

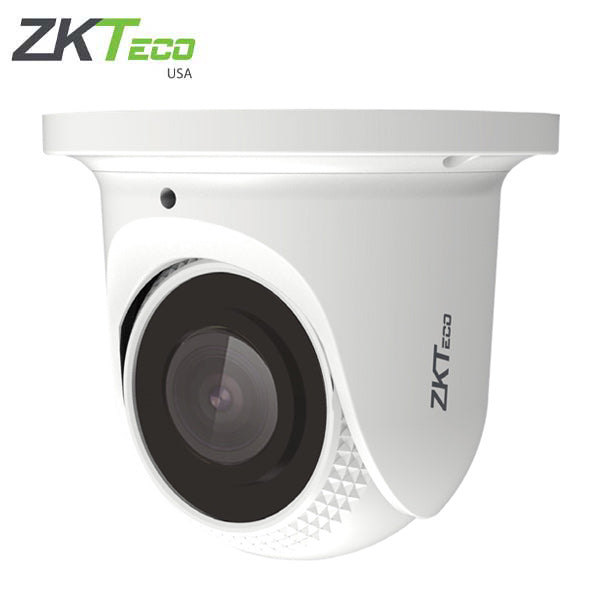

ZKTeco - ES-854N22C-E3 - Eyeball Camera / BioPro Series / 4MP STARVIS Sensor / IP / 2.8mm Fixed Lens / Outdoor / IP67 / 30m IR / Face Recognition

Available to Order
SKU: ZKT-ES-854N22C-E3
NSID: 68217

Please Note: This product has a lead time


BioPro Series 4MP IP cameras provide a cost-efficient solution that is powered by cutting-edge technology for crystal-clear video monitoring. With an embedded face detection algorithm, the camera supports White/Black-list event alarm deployment under different scenarios.

The BioPro series also offers multiple industry-leading intelligent video analytic functions, such as Face Detection, Line Crossing, Intrusion, Object Left/Lost, Counting, for smart event alarms. The P2P cloud function is built-in for every device, which is more convenient and flexible for remote real-time viewing.


  • H.265+ technology is an evolutionary optimization of H.265 and the traditional H.264. It includes a series of encoding strategies such as dynamic ROI, smart 2D&3D noise reduction for delivering high-quality videos, and significantly saving up to 70% bandwidth and storage.
  • Protection With its precise mechanical and rugged metal casing design, IP cameras of the BioPro series rated IP67 could stand against water and
    dust for a long time. With 10% of input voltage tolerance, the cameras could work safely under extreme or unstable power conditions. With a working temperature range from -30°C to 60°C, the cameras could adapt to a variety of harsh outdoor environments.
Call 1-800-878-6604 for Bulk / Dealer Pricing!


Parameter Value
Model ES-854N21C-E3
Image Sensor 1/2.8” Sony STARVIS CMOS
Effective Pixels 2592*1520
Flash / DDR 128Mb / 1Gb
IR LED No. 2
IR Distance 30m
S/N Ratio > 52dB
Lens Type Fixed
Mount Type Board-in
Focal Length 3.6mm
Aperture F1.6
FOV 99°
Optical Zoom N/A
Compression H.265+, H.265, H.264
Resolution 4MP (2592 x 1520) / 3MP (2304 x 1296) /
1080P (1920 x 1080) /
1.3MP (1280 x 960) / 720P (1280 x 720)
Bitrate Control CBR / VBR
Bitrate 1024Kbps ~ 4Mbps
Main Stream Main Stream: 4MP@25fps / 3MP@25fps / 1080P@25fps / 960P@25fps / 720P@25fps
Sub Stream Sub Stream: D1@25fps / VGA@25fps / CIF@25fp s
