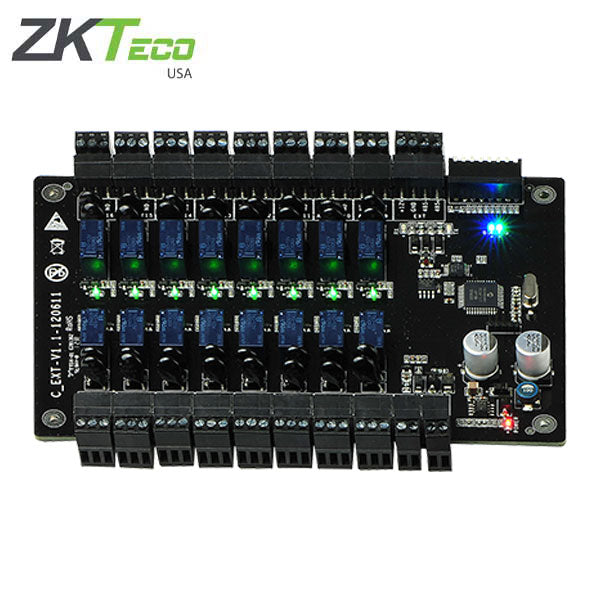

ZKTeco - EX16 - Elevator Control Expansion Board - Up to 16 floors - Works with EC10 panel

Available to Order
SKU: ZKT-EX16
NSID: 67204

Please Note: This product has a lead time

$287.00
$344.40
$287.00

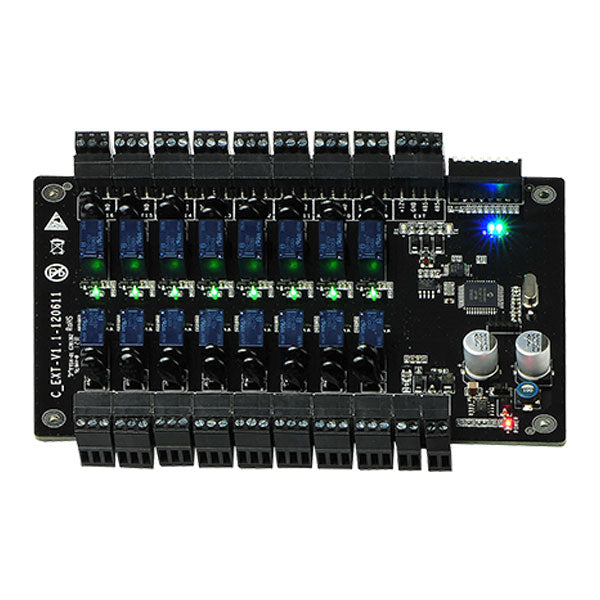

This is the EX16 Floor Extension Board designed to work with the EC10 panel


Made specifically for elevator control, the EC10 panel and EX16 floor extension boards provide customers with the most secured, scalable, versatile and affordable access control solutions available today. Floor access can be restricted based on various user credentials, including fingerprint, proximity card and/or password. Pre-defined time schedules can also be used to control floor access. During normal visits/business hours, unrestricted floor access can also be permitted (aka Passage mode). The EC10 Elevator Control Panel can restrict access up to ten floors. The EX16 Elevator Floor Extension Board restricts access up to an additional sixteen floors. Each EC10 can support up to three EX16 boards. When combining together, a total fifty eight (58) floors can be controlled with a single EC10 bundle.


Simple Management and Scalability: Scale up to 10-26 Floors

Flexible: Match the access level per user to your needs

Call 1-800-878-6604 for Dealer Prices!

Call 1-800-878-6604 for Bulk / Dealer Pricing!


Specifications

Floor Button Control Relay
10

Fingerprint Capacity

3000

RFID Card Capacity

30,000
Event Capacity
100,000
Power Supply
12V DC 1A
Communication to PC
TCP/IP, RS485
Communication to EX16
RS485
Number of supported EX16
3
Dimension
242mm × 95mm × 60mm (L*D*H)
Floor Button Control Relay
16
Communication to EC10
RS485
RS485 Address
Set by DIP switch
Power Supply 12V DC 1A
Net Weight
0.2Kg




Downloads


EC10 panels can be daisy-chained together to control as many floors as desired. Our powerful yet easy to use software makes the Elevator Control System very easy to manage. SDK is available for software companies which desire to integrate with the system.

Compatible With

EC10 panels can be daisy-chained together to control as many floors as desired. Our powerful yet easy to use software makes the Elevator Control System very easy to manage. SDK is available for software companies which desire to integrate with the system.
