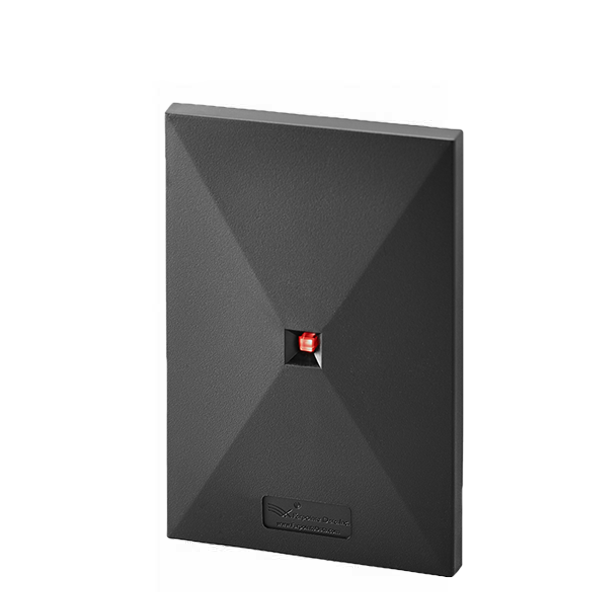

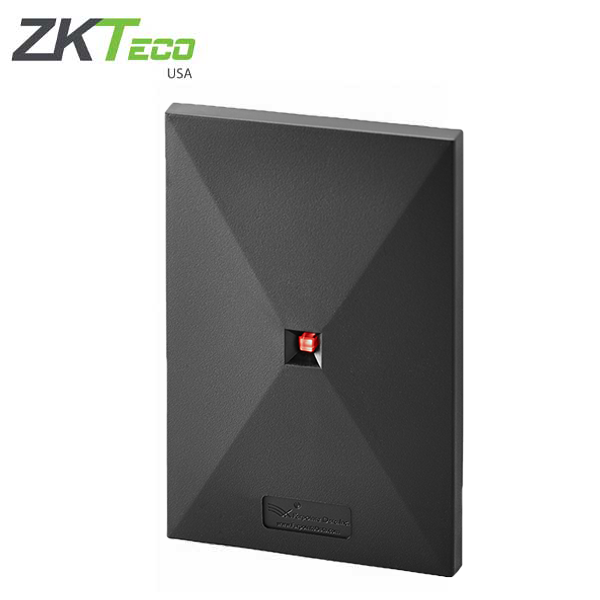

*Discontinued* ZKTeco - KR500H - Outdoor / Indoor Weigand HID Reader - 26 Bit - 125 KHz HID Card Reader - Mullion Mount - OSDP Support

*Discontinued* ZKTeco - KR500H - Outdoor / Indoor Weigand HID Reader - 26 Bit - 125 KHz HID Card Reader - Mullion Mount - OSDP Support

Discontinued
SKU ZKT-KR500-OSDP NSID 7518
$236.70

ZKT-KR500-OSDP

The KR500-OSDP External 26 Bit Weigand ID Reader for 125 Khz Prox Cards The KR Series is the main accessory line of external Wiegand readers for all ZKTeco access control devices. With an elegant and robust design, they are easy to connect and install, and offer the possibility to control one door from both sides. The KR500-OSDP supports the open supervised device protocol to improve interoperability among access control and security products.

  • Conveniently small in size for thin mounting areas
  • Weather-resistant when sealed with epoxy potting
  • Multiple 125 KHz proximity cards supported
  • OSDP output
  • Open Supervised Device Protocol
  • Call 1-800-878-6604 for Dealer Prices!
View full details

Details

Specifications

Card Support
 125 KHz HID Card Reader
Read Distance  ~ 5" Inches
KR500H Mounting
 Mullons, including metald doors and window frames
Wiegand Interface Wiegand-out port
LED
 Red, green, amber, & “off” (represent 4 states)
Beeper Yes
Power 5 to 16VDC
Current draw 30 mA typical, 75 mA peak @ 12V DC
Waterproofing IP67
Operating Humidity
 20% to 80% non-condensing
Operating Temp
 -35° F to 149° F / -40° C to + 65° C
Dimensions 3.2 x 1.7 x 0.7 inches
Mounting Mullions, including metal doors and window frames
