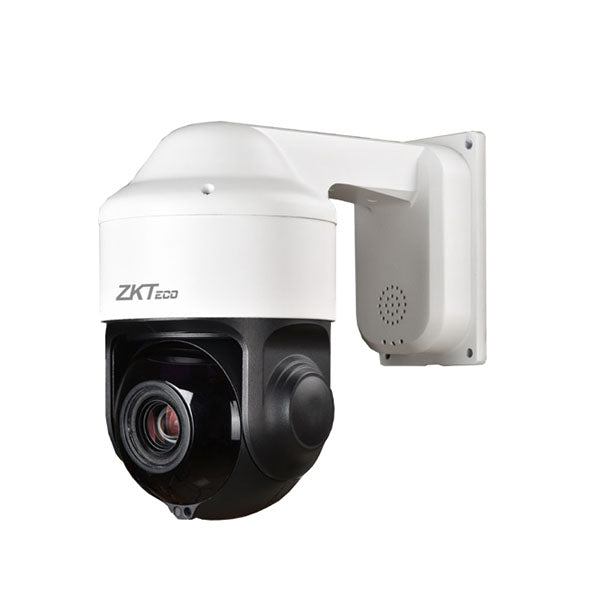

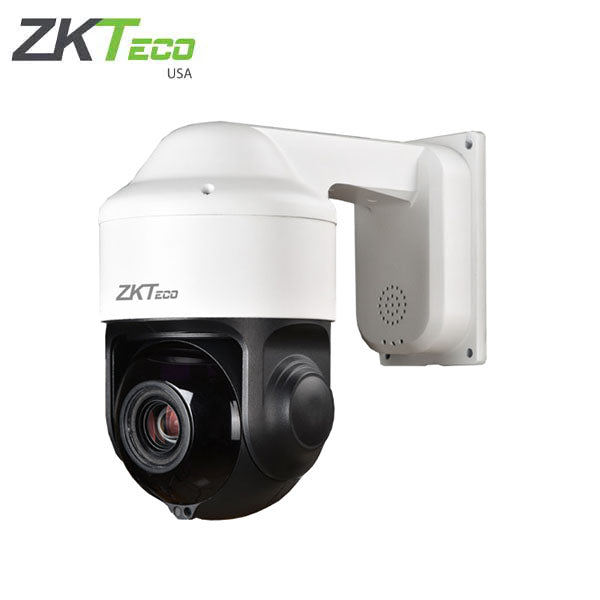

*Discontinued* ZKTeco - PS-855C18L - Network PTZ Camera / 5MP CMOS Sensor / IP / 97.2 mm / Outdoor / IP66 / 120m IR

*Discontinued* ZKTeco - PS-855C18L - Network PTZ Camera / 5MP CMOS Sensor / IP / 97.2 mm / Outdoor / IP66 / 120m IR

Discontinued
SKU ZKT-PS-855C18L NSID 68223
$459.00

PS-855C18L is featured by the mini compact design which is only 5.1 inches and easy for installation. Powered by the cutting edge human detection technology, it could guard your region safely and filter out the false alarm. Coming with default PoE function, it brings more convenience to the installer for cabling and saving the labor cost.
With pan speed up to 180°/s, and tilt speed up to 100°/s, it would promise a large HD video coverage and secured details. It’s the ideal choice for SMB solutions, such as buildings, factories, schools which are designed for indoor and outdoor.

Features:

  • H.265 Delivering high quality video with up to 70% lower bandwidth. H.265 is the optimized evolution of traditional H.264. H.265 technology includes a series of encoding strategy like Dyamic ROI, smart 2D&3D noise reduction etc to save up to 70% bandwidth and storage.
  • Harsh conditions ZKTeco PTZ cameras could run normally in harsh environment, working temperature range from -20°C~60°C with 90% humidity
View full details

Details

Specifications:

Specification Value
Model PS-855C18L
Image Sensor 1/3" 5MP CMOS
FOV 55.4°(W) ~ 3.55°(T)
Scanning System Progressive
Electronic Shutter Auto / Manual (1/5s-1/100,000s)
Min. Illumination 0.05Lux (color), 0.01Lux (BW), 0 Lux with IR on
IR Range 6pcs Array LED + 4pcs Laser IR, 120m
Compression H.265 / H.264
Resolution Main Stream: 5MP@25f/s
Sub Stream: 640*480@25f/s
Bit Rate Main Stream: 2Mbps ~ 8Mbps
Sub Stream: 160Kbps ~ 896Kbps
Bit Rate Control CBR / VBR
Audio Compression G.711a / G.711u (32Kbps) / PCM (128Kbps)
BLC Supported
Human Detection Linkage with Sound and Track by human detection alarm
Audio I/O Built-in with Speaker and Microphone
WDR DWDR
Day / Night Auto(ICR) / Color / B / W
White Balance Auto / Custom / Locked WB / Incandescent Lamp / Warm Light / Natural Light / Fluorescent Lamp
Gain Control Auto
Noise Reduction 2D & 3D DNR
Privacy Mask Up to 5 areas
Network
Protocol TCP/IP, UDP, HTTP, DHCP, RTSP, NTP
Onvif Onvif profile S
Max. Online Users 3
Web Browser IE, Chrome, Firefox
P/T
Pan / Tilt Range Pan: 0°~360°, Tilt: -5°~90°
Pan Speed 0 ~ 180°/s
Tilt Speed 0 ~ 100°/s
Preset 255
Preset Speed 7-Level selection
Pattern Group 4
Auto Mode Support Idle motion, Power-on auto detection, Rotation speed changes with optical zoom proportionally
Protocol Pelco-D, Pelco-P
Net Weight 2.5kg
Ingress Protection IP66
Working Environment -20°C ~ 60°C, RH＜90%
Power Supply PoE / DC 12V 4A
Lightning Protection EDS 4000V
Tour Group 8
A-B Scan Group 8
Dimensions (L*W*H) Φ144 * 242 (mm)
Gross Weight 3.5kg
Ordering Information
Type 5MP PTZ Camera
Part Number PS-855C18L
Description 5.1 inches 5MP PTZ camera, 18X
