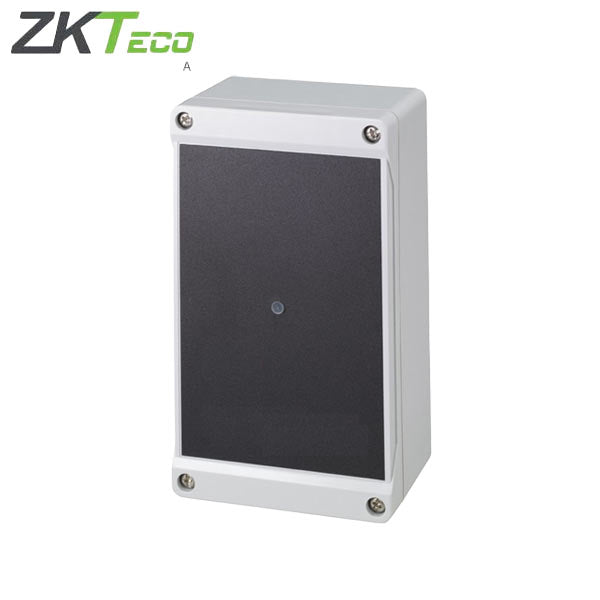

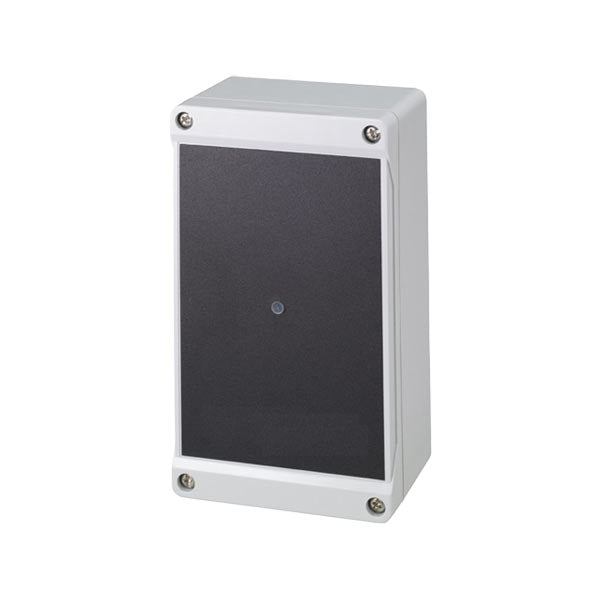

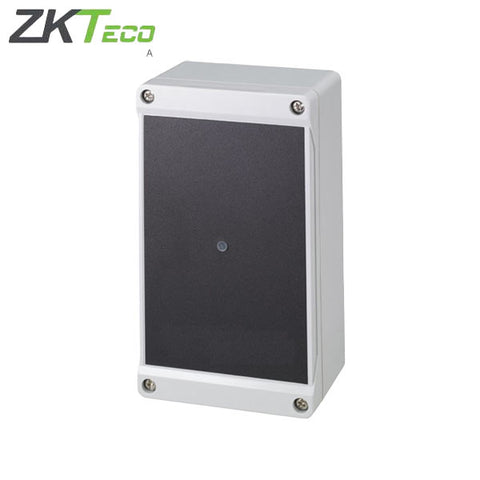

ZKTeco - RFID Reader - Long Range (200ft) - 433MHz
- Product SKU: ZKT-FLR-UHF-60
- NSID: 32817
-
ZKT-FLR-UHF-60
With its 200 feet (60M) read-range, FLR-UHF-60 provides users convenient long range authentication for many applications including door access, vehicular gate access and any application in which the user no longer needs to have their credential held in close range to the reader. FLR-UHF-60 has a built-in Wiegand-Out port which can be connected to most any access control panel (including ZKTeco C3 and InBio door controllers).
Specifications:
| Frequency | 433MHz |
| Range | Read Range Up to 200 feet (60M) |
| Material | Material Die-casting aluminum shell, Antenna panel with engineering plastics |
| Power Supply | 12V DC nominal |
| Current | 120 mA typical @ 12V DC |
| IP-rating | 65 |
| Operating Temperature | 40° F to 149° F (–40° C to +65° C) |
| Dimensions | 3.4″ W × 6.3″ H × 2.3″ D (86.4 mm × 160 mm × 58.4 mm) |
| Certifications | FCC, CE, ICC, UL Standard 294 |
