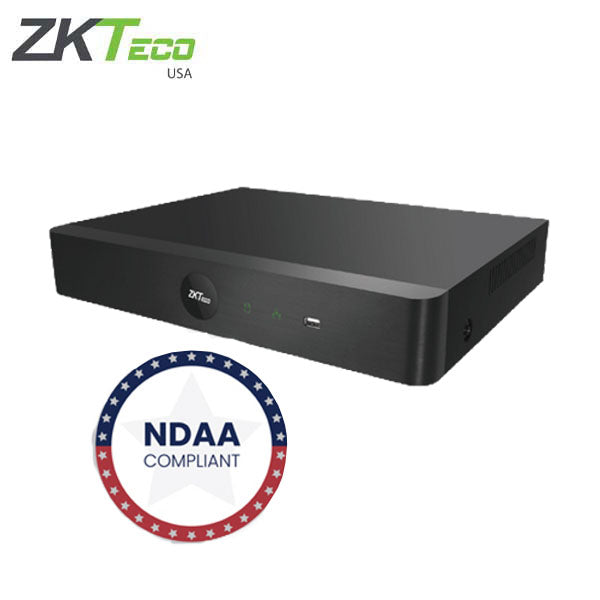

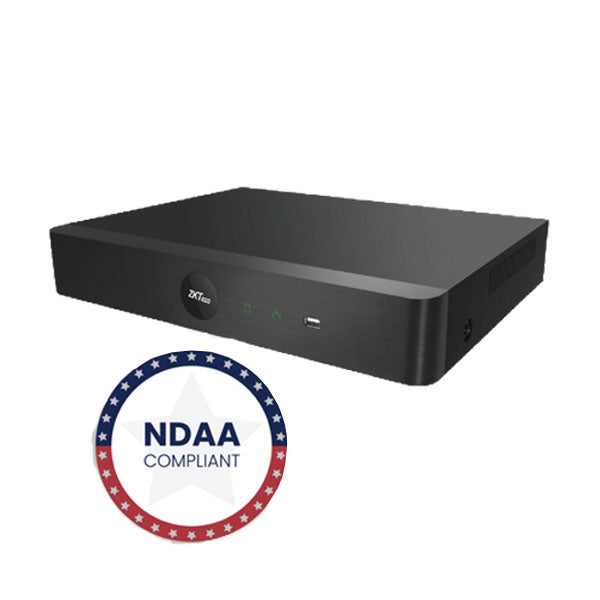

*Discontinued* ZKTeco - Z8508NEQ - 8 Channel H.265 NVR / 1SATA / 5MP / 4 Channel Local Playback

*Discontinued* ZKTeco - Z8508NEQ - 8 Channel H.265 NVR / 1SATA / 5MP / 4 Channel Local Playback

Discontinued
SKU ZKT-Z8508NEQ NSID 68228
$153.00

NVR of the Z8000NEQ series 8CH models could deliver up to 5MP resolution excellent image over advanced H.265 decoding. It’s an ideal consideration for the balance of quality, performance, and budget.

The user-friendly GUI provides intuitive shortcut operations, remote control, management, flexible storage, and playback. Powered by the reliable interoperability and ONVIF Profile S, it’s compatible with plenty of 3rd-party IPC or crossing platform VMS. The devices can be used in governmental institutions, bank sectors, manufacturers, educational or commercial projects.

Operating Temperature: 14°F ~ 131°F

Features:

  • H.265/H.264 decoding
  • Support 8- or 16-channel 5MP IP cameras input & preview
  • Support 4-channel real-time playback synchronously
  • HDMI output up to 1080P high definition
  • Intelligent video analytics functions
  • TCP/IP, DHCP, DDNS, SMTP, NTP, UPNP, RTSP, etc.
  • P2P cloud service supported
  • ONVIF Profile S compatible
View full details

Details

Specifications:
Model ZKTeco Z8508NEQ
Resolution
 5MP(2592*1944) / 2MP(1920*1080) / 1.3MP(1280*1024) /
1MP(1280*720) / D1(1024*768)
Encoding H.265 / H.264
Max Decoding Capability
 8CH@5MP (25/30fps)
Playback Function
 Play, Stop, Play Forward, Play Backward, 30 Seconds Forward, 30 Seconds Backward,
Fast Play, Slow Play, Single Frame Play, Hide/Show Time Bar, Backup, Snapshot, Full Screen
Power DC 12V/2A / 24W (without HDD
Incoming Bandwidth
 60 Mbps
Live View Capability
 1CH@5MP / 8CH@D1(25/30fps)
Video Analytics Intelligent
Web Browsers Multiple supported
Remote Viewing P2P cloud via Mobile Application/VMS
Compatibility ONVIF Profile S compatible
Casing IP67 metal
