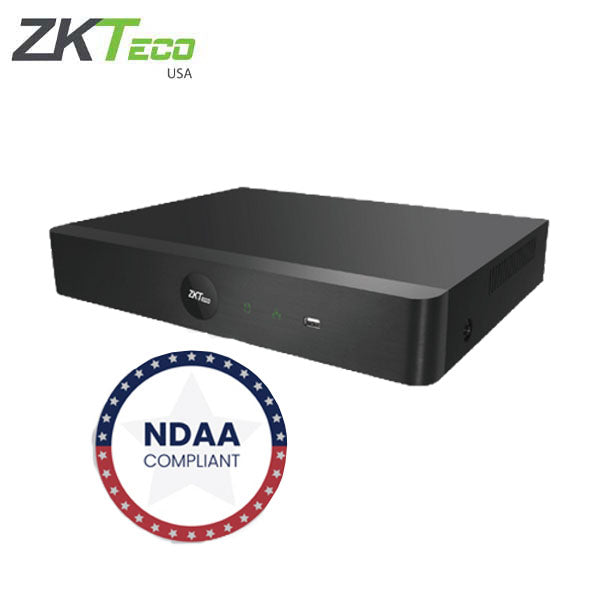

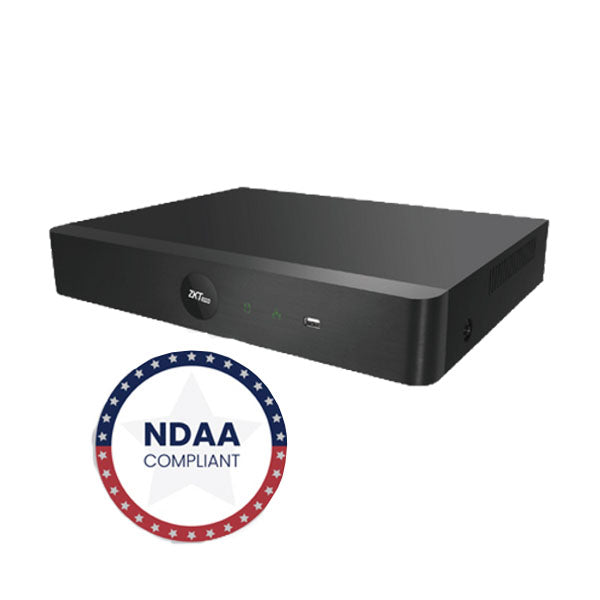

*Discontinued* ZKTeco - Z8516NEQ - 16 Channel H.265 NVR / 1SATA / 5MP / 4 Channel Local Playback

*Discontinued* ZKTeco - Z8516NEQ - 16 Channel H.265 NVR / 1SATA / 5MP / 4 Channel Local Playback

Discontinued
SKU ZKT-Z8516NEQ NSID 68229
$175.00

NVR of the Z8000NEQ series 8CH models could deliver up to 5MP resolution excellent image over advanced H.265 decoding. It’s an ideal consideration for the balance of quality, performance, and budget.

The user-friendly GUI provides intuitive shortcut operations, remote control, management, flexible storage, and playback. Powered by the reliable interoperability and ONVIF Profile S, it’s compatible with plenty of 3rd-party IPC or crossing platform VMS. The devices can be used in governmental institutions, bank sectors, manufacturers, educational or commercial projects.

Operating Temperature: 14°F ~ 131°F

Features:

  • H.265/H.264 decoding
  • Support 8- or 16-channel 5MP IP cameras input & preview
  • Support 4-channel real-time playback synchronously
  • HDMI output up to 1080P high definition
  • Intelligent video analytics functions
  • TCP/IP, DHCP, DDNS, SMTP, NTP, UPNP, RTSP, etc.
  • P2P cloud service supported
  • ONVIF Profile S compatible
View full details

Details



Specifications:

System
Main Processor Multi-core embedded processor
Operating System Embedded LINUX
Video and Audio
Max IPC Input 16CH
Two-way Talk Support
Audio Compression G.711u
Live View
Display Split 1/4/6/9/16 CH
Resolution 5MP(2592*1944) / 2MP(1920*1080) / 1.3MP(1280*1024) / 1MP(1280*720) / D1(1024*768)
Live View Capability 1CH@5MP / 16CH@D1(25/30fps)
Recording
Video Compression H.265 / H.264
Recording Resolution 5MP/3MP/1080P/960P/720P/D1/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Max. Decoding Capability 16CH@5MP (25/30fps)
Incoming Bandwidth 80 Mbps
Bit Rate Main Stream : 16Kbps ~ 8192Kbps Sub Stream : 50Kbps ~ 700Kbps
Record Mode Schedule, Manual, Motion Detection, IVA Events Alarm
Record Interval 1 ~ 120 min (default : 60 min), Pre-record : 1 ~ 30 sec, Post-record : 10 ~ 300 sec
Playback and Backup
Playback Channel 4CH synchronously playback
Search Mode Time/ Date, Alarm Types, IVA Search
Playback Function Play, Stop, Play Forward, Play Backward, 30 Seconds Forward, 30 Seconds Backward, Fast Play, Slow Play, Single Frame Play, Hide/Show Time Bar, Backup, Snapshot, Full Screen
Backup Mode USB Device / Network Remote
IVA Alarm
Local IVA Functions Tripwire / Target Counting / Counting Statistics/Object Left/Lost / Intrusion
Regular Detection Motion Detection / Video Shelter / Video Loss
AI Search Support search target video by multiple intelligent conditions
Network
Network Protocol TCP/IP, UDP, HTTP, DDNS, SMTP(SSL), DHCP, RTSP, NTP, P2P
Max. Online User 20
Web Browser Internet Explorer/Microsoft Edge
ANR (Automatic Network Replenishment) Support
Operation System Windows
Management Platform AntarVis 2.0
Mobile Application AntarView Pro (iOS & Android)
P2P Cloud Service Support
Interoperability ONVIF Profile S, SDK, CGI, API
Storage & Auxiliary Interface
SATA Ports 1 SATA Port, up to 12 TB capacity
eSATA N/A
Raid 0/1/5/6/10 N/A
HDMI 1*HDMI (1080P)
VGA 1920*1080/60Hz, 1280*1024/60Hz
Network Interface 1 RJ-45 Port (10/100Mbps)
PoE Ports N/A
USB 3*USB 2.0
Audio Input/Output 0/1 output
Alarm Input/Output N/A
RS-485 N/A
Power
Power Supply DC 12V/2A
Power Consumption 24W (without HDD)
