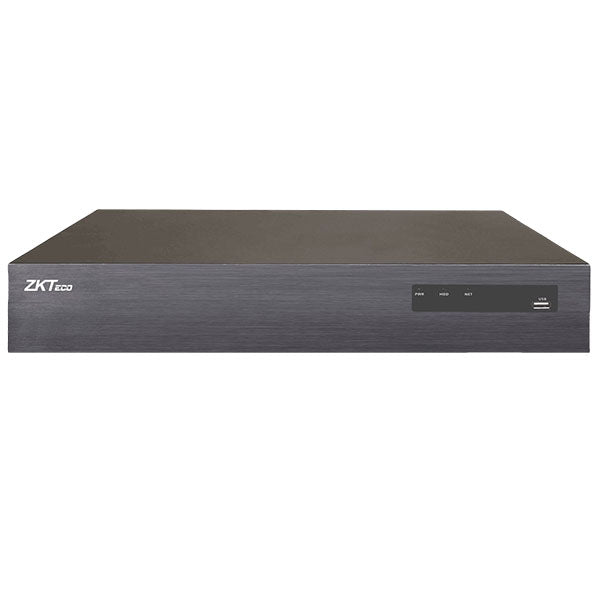

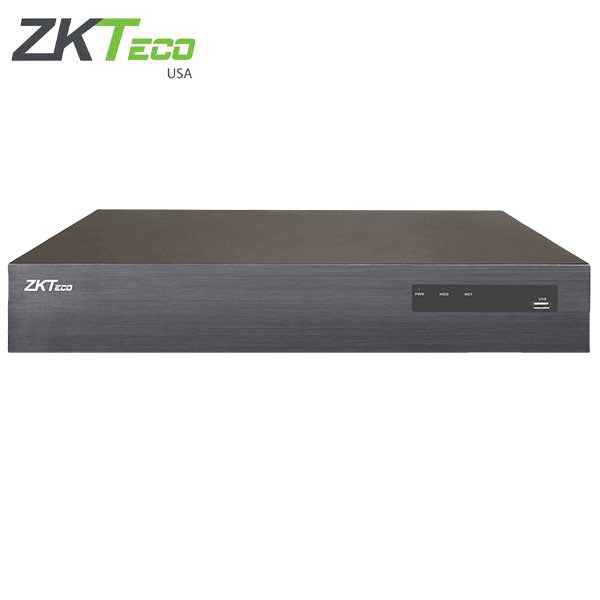

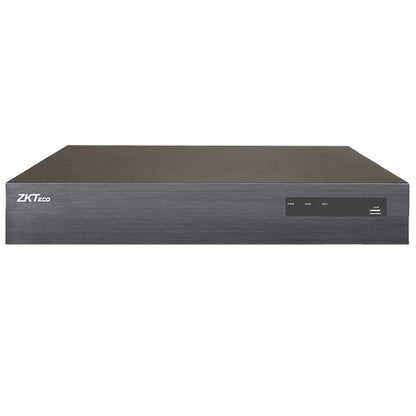

*Discontinued* ZKTeco - Z8536NHR - 36 Channel H.265+ NVR / 9SATA / 8MP / 16 Channel Local Playback
*Discontinued* ZKTeco - Z8536NHR - 36 Channel H.265+ NVR / 9SATA / 8MP / 16 Channel Local Playback
NVR of the Z8000NHR series could deliver up to 4K resolution excellent image over advanced H.265+ decoding. It’s an ideal consideration for the balance of quality, performance, and budget.
The user-friendly GUI provides intuitive shortcut operations, remote control, management, flexible storage, and playback. Powered by the reliable interoperability and ONVIF Profile S, it’s compatible with plenty of 3rd-party IPC or crossing platform VMS. The devices can be used in governmental institutions, bank sectors, manufacturers, educational or commercial projects.
Operating Temperature: 14°F ~ 131°F
Features:
- H.265+/H.265/H.264 decoding
- Support 36 4K IP cameras input
- Support 16 channels real-time playback synchronously
- HDMI output up to 4K high definition
- Intelligent video analytics functions (up to IPC)
- DHCP, DNS, DDNS, NTP, UPNP, RTSP, etc.
- Support multiple web browsers login
- P2P cloud service supported
- ONVIF Profile S compatible
Details
Specifications:
| Model | ZKTeco Z8536NHR |
|---|---|
| Resolution |
8MP(3840*2160) / 5MP(2592*1944) / 2MP(1920*1080) / 1.3MP(1280*1024) / 1Mp(1280*720) / D1(1024*768) |
| Encoding | H.265+ / H.265 / H.264 |
| Max Decoding Capability |
36CH@D1(25/30fps) |
| Playback Function |
Play, Stop, Play Forward, Play Backward, 30 Seconds Forward, 30 Seconds Backward, Fast Play, Slow Play, Single Frame Play, Hide/Show Time Bar, Backup, Snapshot, Full Screen |
| Power | AC100~240V, 47Hz~63Hz / 35W (Without HDD) |
| Incoming Bandwidth |
216 Mbps |
| Live View Capability |
36CH@D1(25/30fps) |
| Video Analytics | Intelligent |
| Web Browsers | Multiple supported |
| Remote Viewing | P2P cloud via Mobile Application/VMS |
| Compatibility | ONVIF Profile S compatible |
