Abrites - CB088 - 7G-Tronic - VGS2/3/4-0 NAG2- FBS3/FBS4 - Direct CAN BUS Connection Cable
- $45.00
-
$49.20 - $45.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

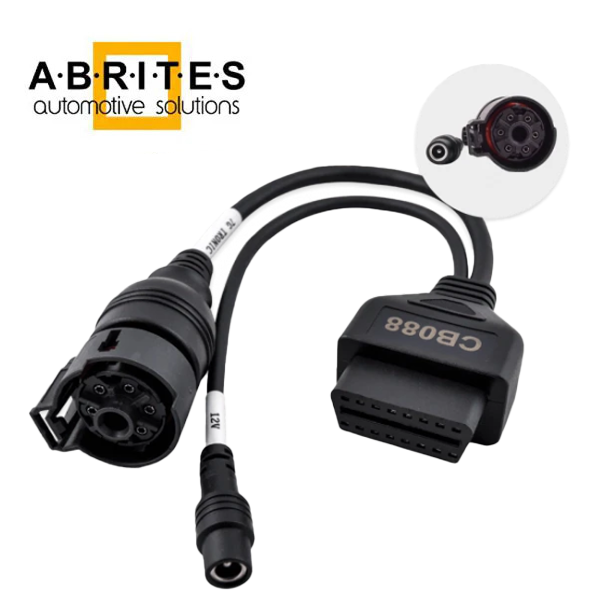

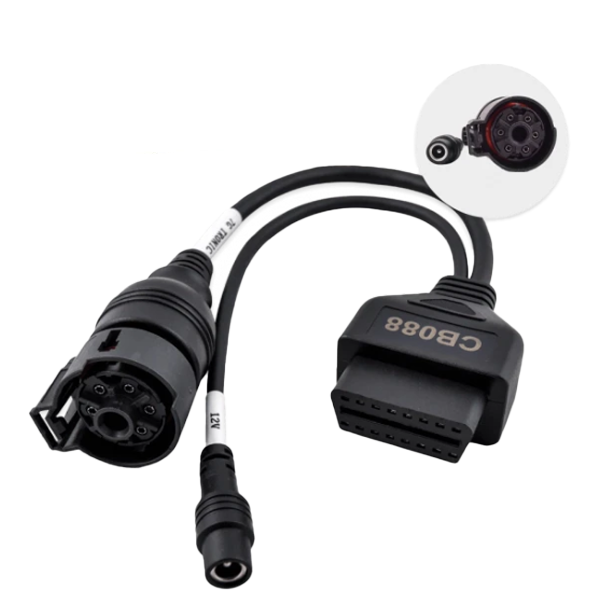

The CB088 cable is a connectivity solution by ABRITES for directly connecting to 7G-Tronic transmission control units VGS2/3/4-0 NAG2 (FBS3/FBS4 generation) via CAN BUS. This cable connects the TCU with AVDI (ABRITES Vehicle Diagnostic Interface) via a DB25 connector, and to a 12V power supply adapter, required for the procedure, via a DC connector.
Functionality:
- Connection between VGS2/3/4-0 NAG2 TCUs (FBS3 and FBS4 gen) via CAN BUS
Supported Vehicles:
ALL Mercedes vehicles with
- VGS2 NAG2 TCU
- VGS3 NAG2 TCU
- VGS4-0 NAG2 TCU
This cable is one of the replacements for CB011. You can combine this one with CB033 and CB034 to create the exact substitute for CB011
In order to work with VGS2 NAG2 and VGS3 NAG2 TCUs, an AVDI with basic software and active AMS is required. A 12V power supply adapter is also needed.
For working with VGS4-0 NAG2 TCUs, it is recommended to use the SET088 7G-Tronic VGS4-0 NAG2 FBS4 Solder-Free connection set, which contains the CB088 cable for guaranteed success and a stable connection. In this case, you also need the MN035 VGS4-NAG2 FBS4 Virgin/Personalization via ABPROG software license.
ABRITES Vehicle Diagnostic Interface (AVDI) with an active annual subscription is required to use the full functionality of this product.
