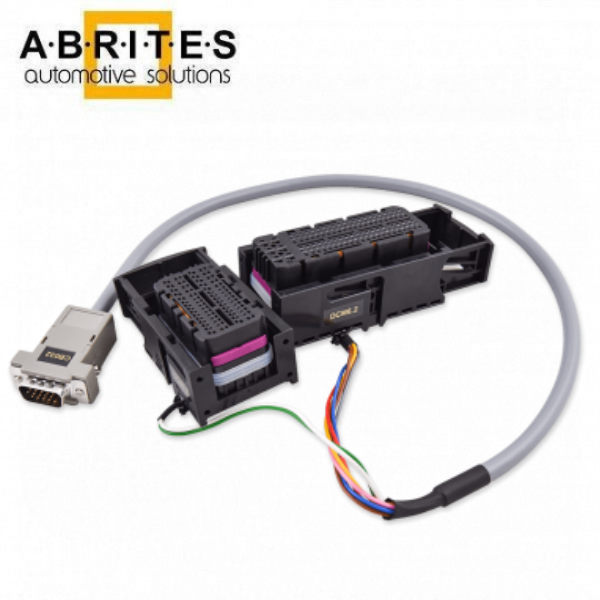

ABRITES CB032 DCM6.2 Connection Cable for VAG vehicles, showing pinout connections for ECU diagnostics and key programming.

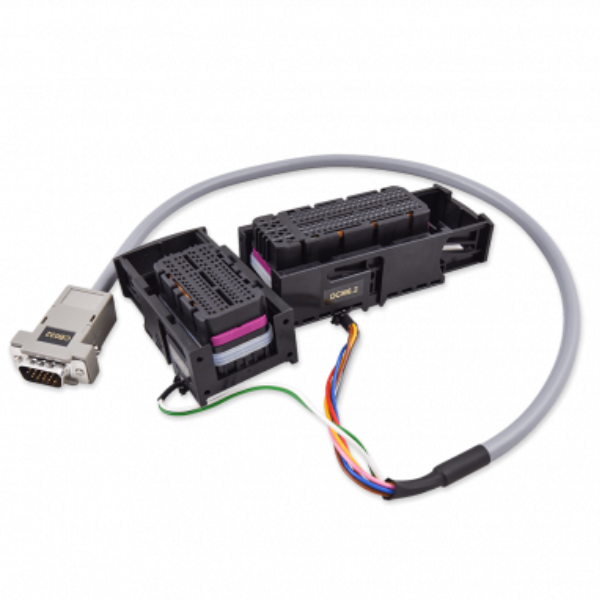

Close-up of the ABRITES CB032 DCM6.2 Connection Cable with detailed pinout layout for use with the ZN051 Distribution Box in VAG vehicle diagnostics.

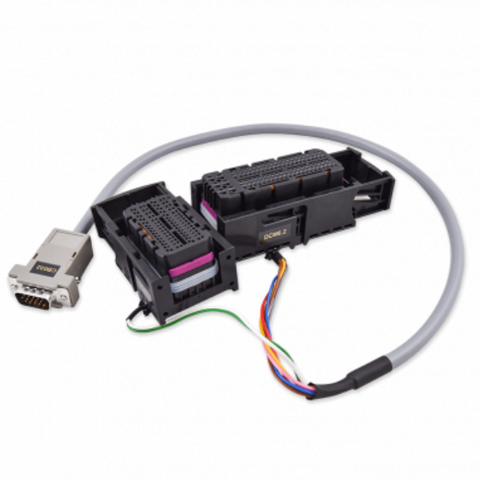

ABRITES CB032 DCM6.2 Connection Cable for VAG vehicles, showing pinout connections for ECU diagnostics and key programming.
Close-up of the ABRITES CB032 DCM6.2 Connection Cable with detailed pinout layout for use with the ZN051 Distribution Box in VAG vehicle diagnostics.

Abrites - CB032 - DCM6.2 Connection Cable

In Stock
SKU: ABRITES-CB032
NSID: 76177
$120.00
$126.05
$120.00

The Abrites CB032 DCM6.2 Connection Cable This cable is used for connection with DCM6.2 Engine Control Units in VAG vehicles (ECUs) in VAG (Volkswagen Auto Group) vehicles. This cable is specifically designed to interface with the ZN051 ABRITES Distribution Box when reading Component Security (CS) data for VAG ECU DELPHI DCM6.2. The data gathered from the DCM6.2 ECUs is essential for key programming and module replacement. The process also requires the VN002 Parts Adaptation license to complete tasks such as component adaptation and ECU programming​

Features:

  • Reads Component Security (CS) data for ECU programming
  • Enables key programming and ECU module replacement
  • Supports VAG vehicles equipped with DELPHI DCM6.2 ECUs

Get it shipped ! Order within:

Member Benefits

Get it shipped ! Order within:

Get an Extra Hour with

Learn More
Description
Description
x


Specifications:

  • Compatibility: DCM6.2 ECUs in VAG vehicles



HD15 Pinout:

  • Pin 1 (Pink): IGN → T94 pin 87
  • Pin 2 (Yellow): B+ → T94 pin 6
  • Pin 5 (White and Green): BOOT 1 → T60 pin 52
  • Pin 7 (Brown): T1 → T94 pin 75
  • Pin 8 (Red): CAN H → T94 pin 68
  • Pin 11 (Grey): GND → T94 pin 2
  • Pin 14 (Blue): CAN L → T94 pin 67




    Reading DCM6.2 ECU CS using the CB032 cable made by Abrites

    This cable is used for connection with DCM6.2 Engine Control Units in VAG vehicles. CB032 connects the ZN051 ABRITES Distribution Box when reading Component Security Data (CS) on Bench for VAG ECU DELPHI DCM6.2. The VN002 Parts adaptation license is needed to complete the procedure. The read data from the DCM6.2 ECUs is used for key programming and module replacement.




    N.B. Please note that you will require an AVDI interface with an Active AMS in order to use this special function. Absolutely no tokens required.
