*Discontinued* Alarm Lock Trilogy - PDL6100 - Digital PROX Lever Set - Networx - Wireless & Ethernet Feature - 26D - Satin Chrome
- $1,112.07
-
- $1,112.07
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

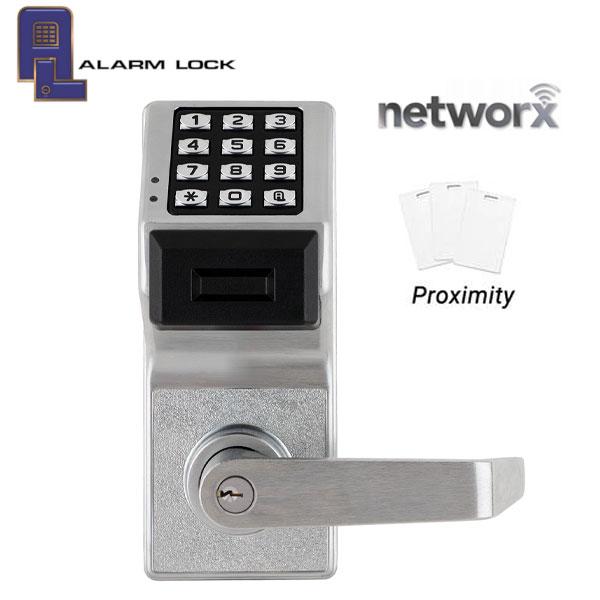

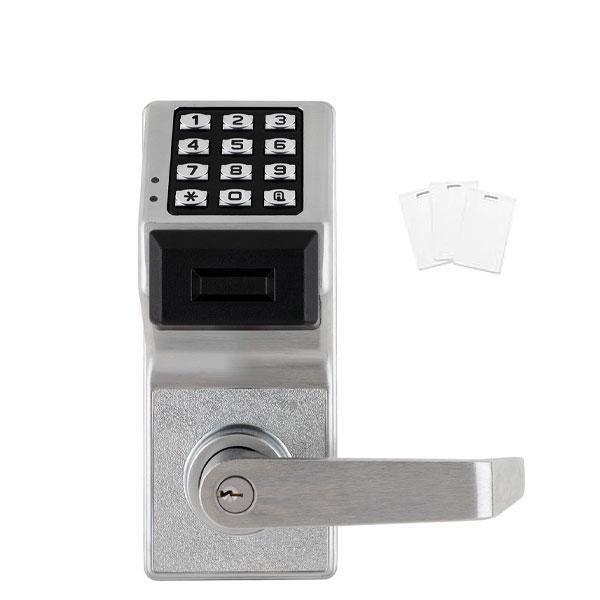

PDL6100-US26D Alarm Lock Trilogy Networx Digital Cylindrical Keyless PIN/PROX Lock Leverset in Satin Chrome Finish
The Trilogy PDL6100 Series Networx Locks eliminates door-to-door programming and audit trail retrieval by communicating wirelessly via Ethernet or 802.11B/G while providing all original Trilogy standalone lock functionality. It provides a quick, easy and economical access system with advanced features and functions like various automatic schedules, event logs, and support for 5000 doors and 5000 existing Prox. ID Cards/Badges. However, this lock has no wires to run and no access panels or power supplies to buy or install. This lock is like the DL6100 but with PROX feature which allows the reading and use of most HID cards and FOBs as an access option.
- Wireless programming requires DL-Windows software (FREE download at Alarmlock.com website) and Networx Gateway (sold separately)
- $1,112.07
-
- $1,112.07
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xLOCK FUNCTION | Entrance PROX Networx Digital Lever Lock w/ wireless & ethernet feature |
OPERATION | The clutch mechanism permits turning the lever without retracting the latch and reduces stress on lock bodies and spindle. Outside lever free turning in the locked position. Entering access code, key bypass, or remote bypass will allow the lever to retract the latch. Inside lever always instant egress |
DOOR THICKNESS | 1 5/8" to 1 7/8." |
BACKSET | 2 3/4" Standard |
KEYPAD | All metal, 12 buttons programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability, and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced |
USERS | Up to 5,000 3-5 digit codes. Master, Managers, Basic users. 500 scheduled events and 35,000 event audit log. |
STANDARD KEY OVERRIDE CYLINDERS | Solid brass 6 pin tumbler cylinder pinned 5, SC1 keyway, furnished in all locks. Additional tailpieces included HW580 fits Schlage, Corbin/ Russwin CL, Sargent 480 Series, ASSA65-611. Model HW620 fits Ilco and Lori cylinders |
LATCHBOLT | UL Listed, fire-rated, 3 hours, 1/2” throw, solid brass, deadlocking. Reversible. Adjustable front for flat or beveled doors |
STRIKE | 1 1/8” x 2 3/4” T strike & 1 1/4” x 4 7/8” ASA strike included. With screws for wood or metal jambs |
HANDING | Non-handed |
FINISHES | US26D satin chrome |
POWER | 4 C-cell batteries supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive® motor |
DOOR PREP | Standard ANSI A115 Series Prep, modified by adding additional through-bolt holes |
COMPLIANCES | Grade 1, heavy-duty cylindrical lockset, UL listed and FCC certified. ADA compliant lever sets |
Return Policy: We accept returns on unopened products up to 30 days after the date of purchase. We do not accept opened/damaged/defective goods. To return affected items please contact Alarm Lock directly at 1-800-645-9440 or visit their support page here
Downloads:
Specifications
