*Discontinued* Ilco - Silca Speed 040 - Automatic / Manual Edge Cut Key Duplicator - 120V - 2 Free 250 Packs Of SC1 Keys Bundle
In Stock
SKU:
ILCO-SPEED-040-2024FALLBUNDLE
NSID:
75908
- $1,339.38
-
- $1,339.38
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

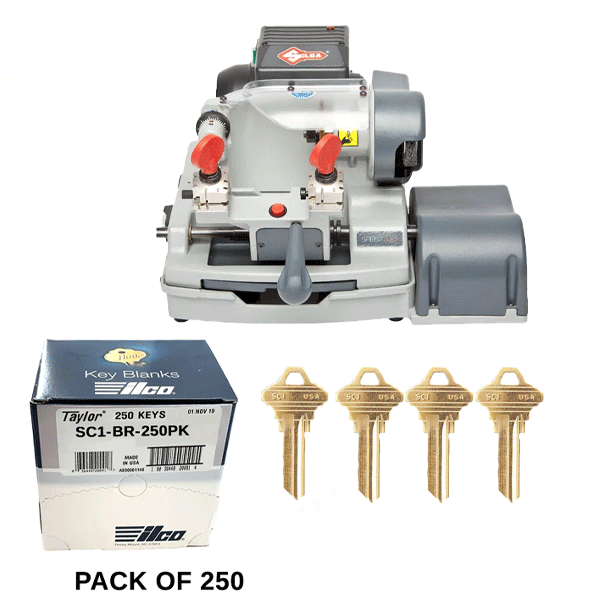

This Bundle Includes the Following:
- $1,339.38
-
- $1,339.38
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
Description
x
Ilco SC1-BR SCHLAGE Key Blank 250 Pack:
| Application | Fits SCHLAGE C Keyway |
| Bow Type | Original-shaped bow |
| Material Type | Brass |
| Key Blank Type | Pin tumbler Cylinder Key |
| Pin Length | 5 Pin or Disc |
Ilco Silca Speed 040 Automatic / Manual Edge Cut Key Duplicator 120V
The Speed 040 is primarily an automatic model that also provides the flexibility to be operated manually when desired to duplicate edge cut/flat style keys accurately.
The Speed 040 is the perfect choice for the store or shop wanting the versatility to choose between automatic or manual operation. This versatile operational mode combined with the modern, open style and many additional features will provide users with years of service.
Features:
- The spring-loaded carriage is engaged by the press of a button and applies a consistent cutting pressure while in automatic mode
- Four-sided, nickel-plated jaws for clamping the majority of all edge cut/flat type keys. Smooth rotation by simply twisting into position.
- Slotted jaw surfaces accommodate tip stop bars and a rigid shoulder gauge design to allow for greater accuracy when loading and gauging keys.
- Wide spacing 3 1/2” (88.9 mm) spacing between clamps accommodate large bow (head) and long blade keys, including flip style keys
- Depth tracer system with micro adjustment for precise calibration in increments of .00098” (0.025mm)
- TiN (Titanium Nitride) coated cutter for longer life and oxidation resistance
- Nylon deburring brush
- Electro-magnetic “main” safety switch with a separate cutter motor switch for easy access.
- Large transparent cutter safety shield contains chips and provides a storage area for accessories
- Large drawer-type swarf (chip) tray under the carriage for easy access
- Mounting bracket included for securing the machine to counter
- Two-year warranty
| Power Supply: 120V-60Hz | Cutter: Tin coated |
| Maximum absorbed power: 2.8 Amp, 200 Watt | Brush: Nylon, 5/8” (15.87 mm) bristles |
| Cutter motor: single phase and speed | Width: 19.3” (490 mm) |
| Movements: by ball joint on rectified carriage | Depth: 18.1” (460 mm) |
| Tool Speed: 1350 rpm | Height: 11.8” (300 mm) |
| Carriage Runs: 1.65” (42 mm) | Weight: 44 lbs. (20 kg) |
