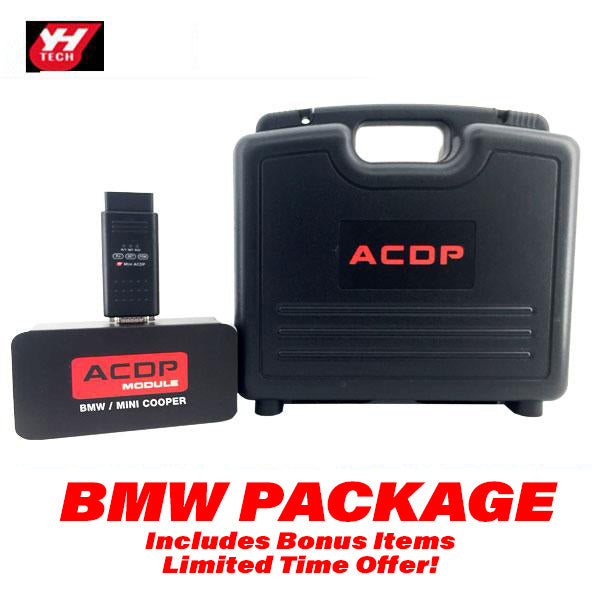

*Discontinued* Mini ACDP Key Programmer - BMW IMMO Package - November Special - Limited Time Bonus Items
- $806.40
-
- $806.40
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
This is the Brand New BMW IMMO Package! Mini ACDP Key Programmer Kit for BMW – Fully Loaded Package
Including BONUS items for a limited time:
- B48 Bench Interface Board
- N20 / N55 / B38 Bench Interface Board
SOFTWARE DOWNLOAD AVAILABLE HERE
This is the latest technology in BMW Key Programming
Works with Your Phone and Phone App or PC. The phone is NOT Included.
Can Program: CAS1 / CAS2 / CAS3 / CAS3+ / CAS4 / CAS4+ / FEM / BDC
- No need to remove the chip
- No need for soldering
- No need to cut the line
- No need to lift the pin
- Connects with your iPhone / Android / or PC
- $806.40
-
- $806.40
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xLinks to the software below.
SOFTWARE DOWNLOAD AVAILABLE HERE
Works with Your Phone and Phone App or PC. The phone is NOT Included.
Can Program: CAS1 / CAS2 / CAS3 / CAS3+ / CAS4 / CAS4+ / FEM / BDM
Can Do All Keys Lost w/ Module 3 (ISN)
This is the latest technology in BMW Key Programming
- No need to remove the chip
- No need for soldering
- No need to cut the line
- No need to lift the pin
- Connects with your iPhone / Android / or PC
BMW FUNCTIONS
Main Features
- CAS4/CAS4+ Key Programming Without Soldering or removing
- the component.
- FEM/BD.C Key Programming Soldering
- Read ISN Code from OBD Port directly(Partially)
- CAS3++(ISTAP) no need downgrading
- CAS/CAS2, CAS3 by OBD
CAS-CAS3+, Key Programming by OBD
- Read CAS EEPROM
- Add Keys
- Reset Mileage
- Backup or recover CAS
- All keys Lost
CAS4/CAS4+
- Read CAS4 EEPROM without soldering
- Add Keys without soldering
- Reset Mileage without soldering
- Back up or recover CAS without soldering
- All keys Lost
FEM/BDC:
- All keys lost
- Add keys without soldering
- Delete Keys without soldering
- Enable/Disable keys without soldering
- Read Key ID
- Repair/Replace FEM Module without soldering
- Reset Mileage without soldering
Read and Write ISN Code:
N20(mevd1724, mevd172P, mevd1729), N13(mevd1725,), N55(mevd172,
mevd1726, mevd172G, mevd172S, MEVD17, ), MSV80, MSD81, MSD85,
MSD85HY, MSD87, MSV90, MEVD1728(s63), mev1722, med172, mevd1727,
dde701_edc17c50, BMSX….
SOFTWARE DOWNLOAD AVAILABLE HERE
New updated function for ACDP Android APP
Purpose: In order to confirm whether Yanhua Mini ACDP can program the user's key.
Such as:
1. Help the user confirm the BMW IMMO is BMW CAS or FEM when you only know the car model and year.
2. If all keys lost, it requires to read out the engine ISN code, but the user doesn't know the ECU model, then this software will help. Which is helpful for both users and dealers.
For example, when the dealer has no idea whether Mini ACDP can program key on BMW 5 series 2017 or not, which module to order, then the dealer can ask for the VIN to check the BMW information before making the decision.
This kit includes the following:
- ACDP Programmer Basic Module – This module is a necessary basic configuration for other modules
- Supports 93 /24/ 25 / 35/ 95 Series EEPROM in-circuit programming
- (ICP) and on adapter board programming (OBP)
- Parts of Freescale / NEC MCU in circuit programming（ICP)
- Module #1 – CAS Module
- Supports CAS1 – CAS3+ IMMO key programming by OBD or ICP mode, Mileage reset, Read/Write EEPROM and FLASH data.
- Supports CAS4/CAS4+ IMMO key programming in-circuit programming (ICP), Mileage reset, Read/Write EEPROM and FLASH data.
- Module #2 – FEM/BDC Module
- Supports FEM/BDC IMMO key programming by ICP or OBP mode, Mileage reset, Recover/Backup data.
- Module #3 – ISN Module
- Read/write N20/N55/N13 ISN code via OBD.
- Read/write MSV80/MSD85 ISN code without opening DME shell.
- Read/write other DME ISN code by opening DME shell.

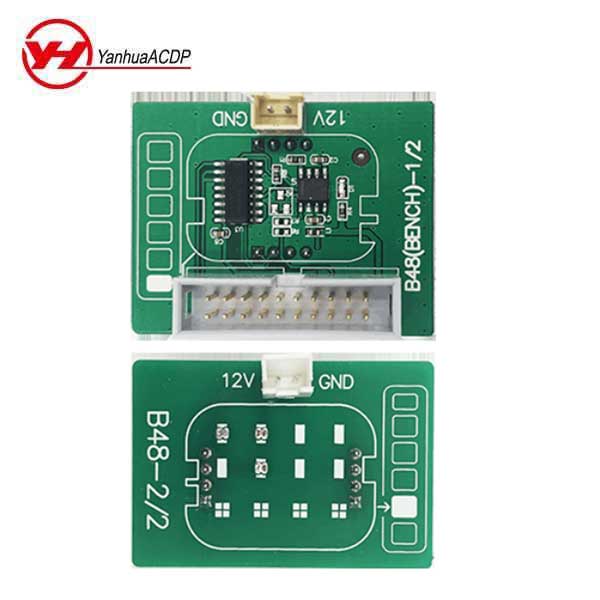

- BONUS ITEM - B48 Bench Interface Board
- This bench board allows you to read B48 / B58 ISN from DME

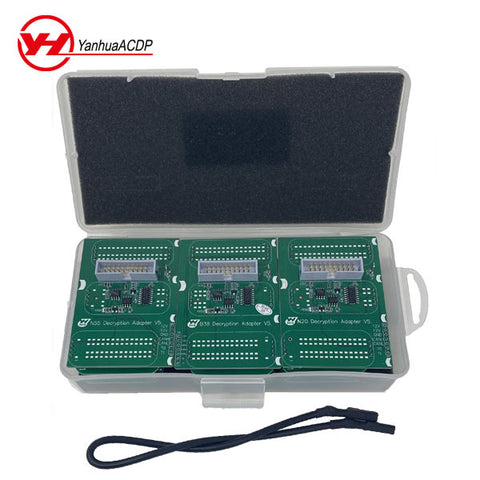

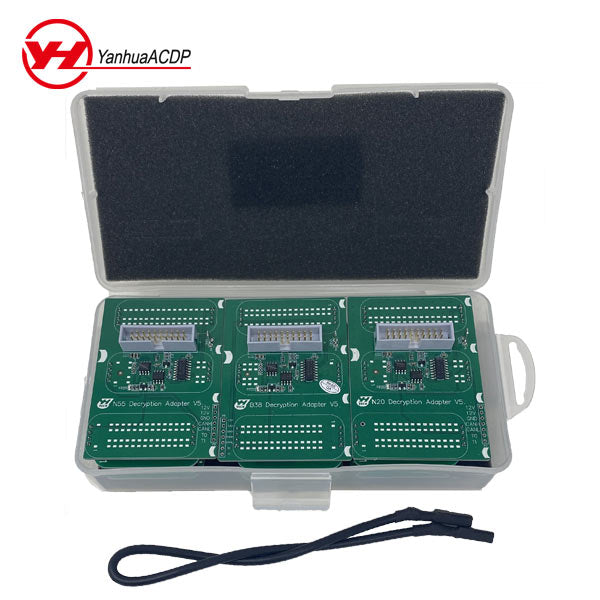

- BONUS ITEM - N20 / N55 / B38 Bench Interface Board
- This bench board allows you to read N20 / N13 / N55 / B38 ISN without wiring
Please note: if any of the items in the kit are out of stock they will be back-ordered and shipped at a later date

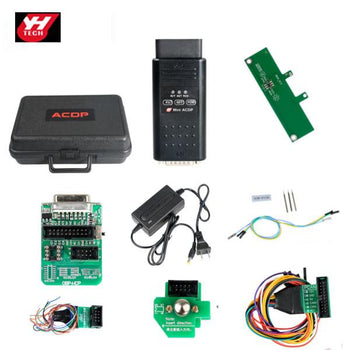

Now with a Durable Carrying Case! Full Instructional Videos HERE Software for all platforms available below Contents of the kit ACDP Programmer

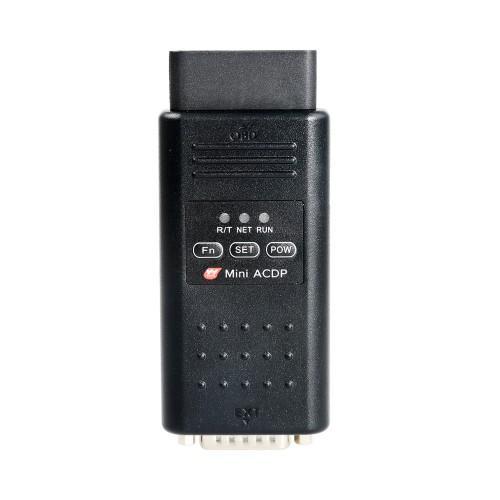

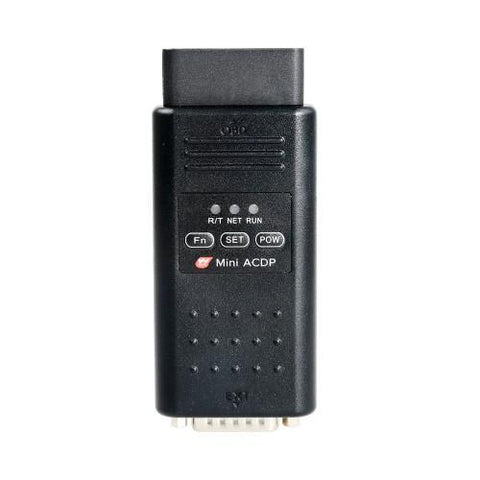

- ACDP Programming Unit
- OBI+ICP Adapter
- Puncture Socket w/ extra plastic seating
- BAY-Key Adapter
- P8P Cable
- 8P Cable
- 20P Cable
- 12v Switch Power Supply
- Conformal coating cleaning probes
- Double-head line
- BDM01 – Adapter
- BDM-ICP Cable
- BMW-CAS3 Interface Board
- BMW-CAS4 Interface Board
- BMW-CAS4 Interface Board Buckle
- CAS3 Copper Pillar Package (M2.5*12+6mm)
- CAS4 Copper Pillar Package (M2.5*12+6mm)
- Desktop OBD transfer board
- BMW FEM / BDC Test Platform Cable
- BMW-N13 Interface Board
- N20 Shell Drilling Hole Caliper
- N13 Interface Board Copper Pillar Package (Single Head Six Angle Stud M3.5*27+8mm)
SOFTWARE DOWNLOAD AVAILABLE HERE
