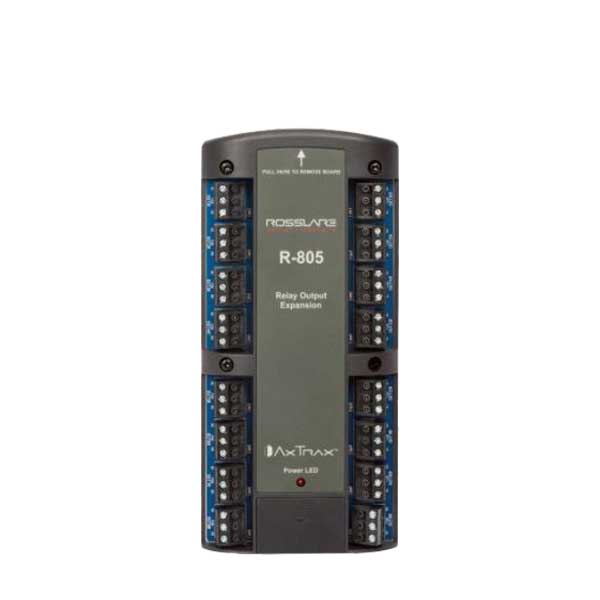

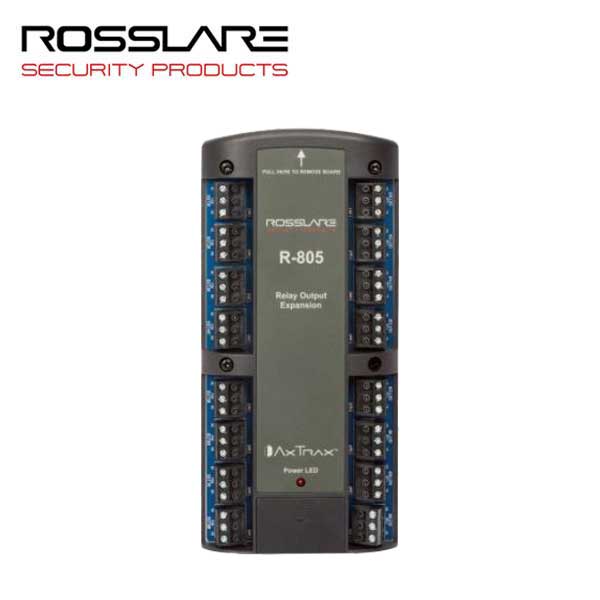

*Discontinued* Rosslare - R-805 - Controller Expansion Board - 16 Outputs - For AC-825IP

*Discontinued* Rosslare - R-805 - Controller Expansion Board - 16 Outputs - For AC-825IP

Discontinued
SKU ROS-R-805 NSID 25428
$404.25$485.10On Sale You save $80.85 (17%)

ROS-S-805

Expand the range and functionality of the AC-825IP with a series of expansion boards, featuring DIN rail and enclosure mounting options. The R-805 Expands the number of outputs featured on the AC8215, from just 6 to 16 outputs available.

Features:

View full details

Details

Specifications:

Enclosure: ME-1515 (up to 2 R/S/D/P expansions)
Enclosure SMPS: Input: 90 to 265 VAC, 50–60 Hz, Switch mode power management board
Output: 12 VDC, 4 A
PCBA Input Power: 12 VDC, 2 A, regulated power management board
Battery Charger: 12 V sealed lead acid (SLA) up to 7 Ah
Relays 5 A, Form-C: 16
Inputs: N/A
Readers (Wiegand+OSDP): N/A
Connectivity:

OSDP
Board Dimensions: 7.0 x 3.4 x 1.1 in.
Enclosure Dimensions: 13.6 x 15.9 x 3.9 in.
Dimensions: 6.2 x 2.3 x 1.3 in.
Product Warranty: 2-Year Limited Product Warranty



Downloads:

Installation Guide
