*Discontinued* Rosslare - DR-B9000 - Fingerprint Scanner / Reader Enrollment Terminal - w/ Liveness Check - for the Biometric Reader 9000 Series

*Discontinued* Rosslare - DR-B9000 - Fingerprint Scanner / Reader Enrollment Terminal - w/ Liveness Check - for the Biometric Reader 9000 Series

Discontinued
SKU ROS-DR-B9000 NSID 25340
$275.80$330.96On Sale You save $55.16 (17%)

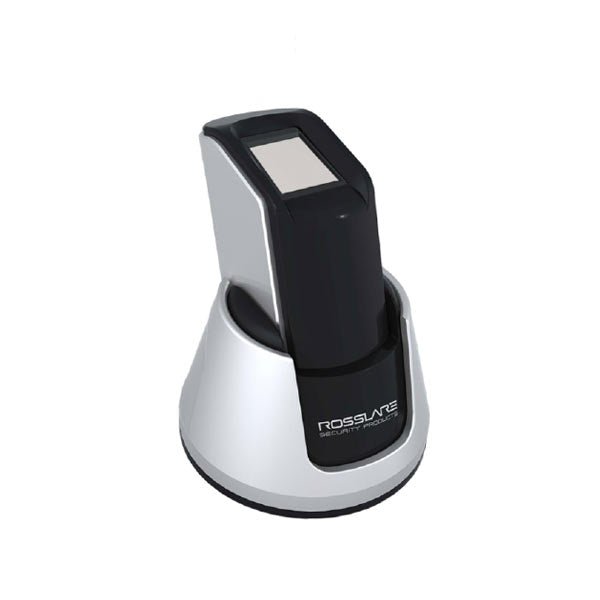

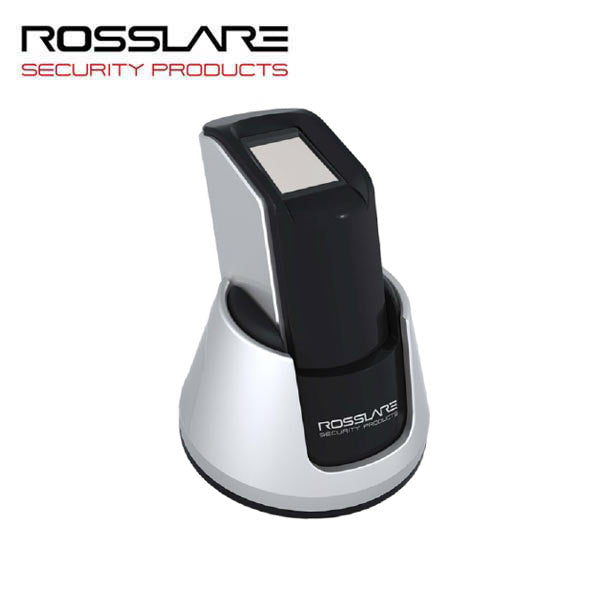

Rosslare’s DR-B9000 is a USB 2.0 fingerprint enrollment scanner to be used with the Rosslare 9000 series fingerprint readers. The enrollment scanner can be set up using the AxTraxNG Client software or with the RosslareBio 9000 standalone management software, which allows third-party controller support. This device features a modern design with a glass scanning surface, making it robust and long lasting.

Features

  • Compatible with Rosslare AxTraxNG management system
  • Scratch-proof glass scanning surface
  • Dual technology IR and camera scanning
  • Crystal clear finger scan image
  • Well designed for convenient use
  • USB 2.0 compliant and USB powered

View full details

Details

Specifications

Operating Voltage 5 VDC (USB powered)
Operating Current
 Standby: 5 mA Normal: 80 mA Maximum: 120 mA
System Compatibility Compatible with a Rosslare's AxTraxNG, as well as many third-party access control software.
Compatible Readers ROS-AY-B9120BT
ROS-AY-B9150BT
ROS-AY-B9250BT
ROS-AY-B9350
Interoperability ISO19794-2/4, ANSI378
Resolution 500 DPI - 8 bits/pixel (256 Gray Level)
ESD Tolerance < +/- 8 KV
Platen Area 14.8 (x) x 17.9mm (y)
Effective Sensing Area 12.6 (x) x 14.8mm (y)
Effective Pixel Array 248 x292
Image Aspect Ratio 0.85 (x / y)
Sensor Size 14.8 x 17.9 mm
Casing Size 68 x 68 x 81 mm (with Stand)
30 x 48.5 x 70 mm (w/o Stand)
Light Source
 White LED
Warranty
 2-Year Limited Manufacture Warranty
